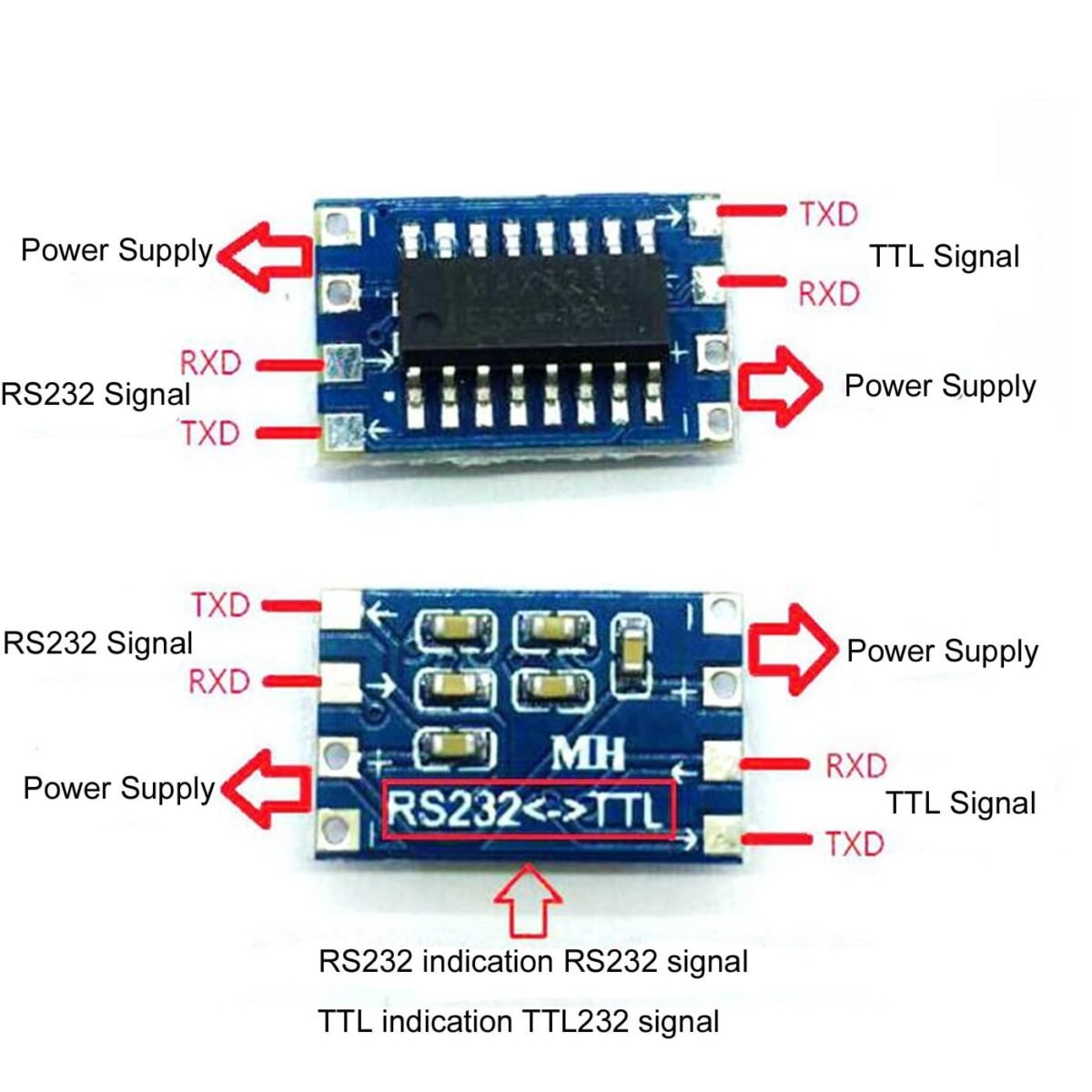

RS232 MAX3232 to TTL Level Converter

The RS232 MAX3232 to TTL Level Converter is a compact interface module designed to facilitate communication between RS232 serial devices and TTL logic level systems. It is based on the MAX3232 IC, which provides reliable and efficient RS232-to-TTL level conversion. This module is useful for connecting serial communication peripherals such as GPS modules, Bluetooth modules, and other RS232 devices to microcontrollers.

Key Features:

• Converts RS232 voltage levels to TTL logic levels
• Compact and easy-to-use design
• Supports standard RS232 communication protocol
• Integrated MAX3232 IC for high-performance conversion
• Low power consumption
• High-speed communication capability

Technical Specifications:

• IC Used: MAX3232
• Input Voltage Range: RS232: ±5V to ±15V; TTL: 3.3V or 5V
• Power Supply: 3.3V or 5V DC (depending on TTL logic level)
• Data Rate: Up to 250 kbps
• Connectors:
  • RS232 Side: DB9 connector or terminal block (depends on module version)
  • TTL Side: 4-pin header (TX, RX, VCC, GND)
• Communication Interface: UART (TTL logic levels)
• Temperature Range: -40°C to +85°C
• Dimensions: Typically 20 mm x 30 mm (may vary by manufacturer)

Applications:

• Serial communication between RS232 devices and microcontrollers
• Connecting RS232 peripherals to TTL-based systems
• Serial port expansion for embedded systems
• Interfacing with legacy serial equipment
• Data logging and communication

Usage:

1. Power Supply: Connect the module to a 3.3V or 5V power source, depending on the TTL logic level.
2. RS232 Connection: Connect the RS232 device to the RS232 side of the module (DB9 connector or terminal block).
3. TTL Connection: Connect the TTL side (TX, RX, VCC, GND) to the microcontroller or TTL-compatible device.
4. Communication Setup: Ensure proper TX and RX pin connections between the module and the devices. Verify voltage levels and communication settings.
5. Testing: Test the communication by sending and receiving data between the RS232 device and the TTL device.

Caution:

• Ensure the module is powered with the correct voltage level to avoid damage.
• Verify that the RX and TX connections are properly matched between the devices (crossed connections).
• Follow the manufacturer’s guidelines for interfacing and operation to ensure reliable communication.
