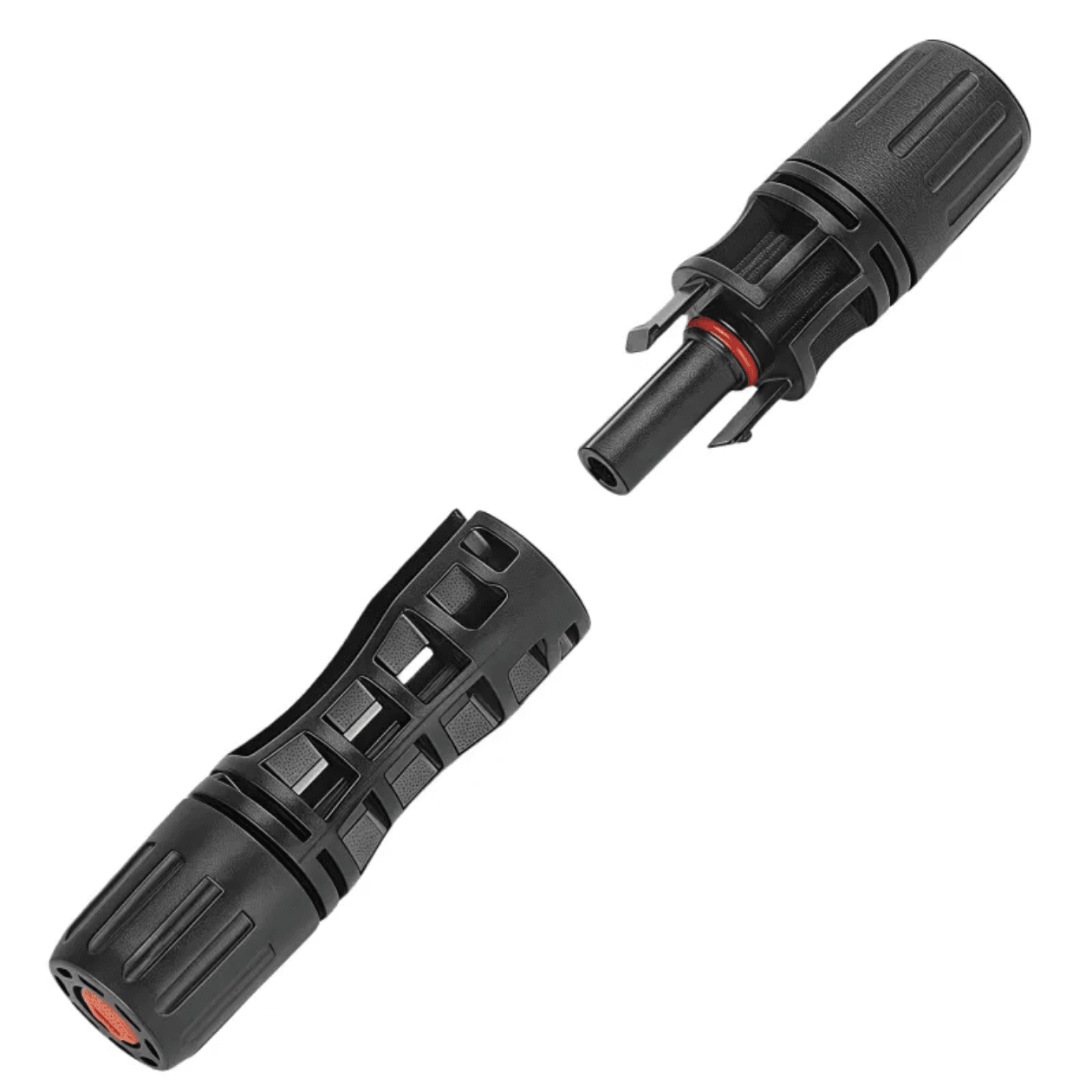

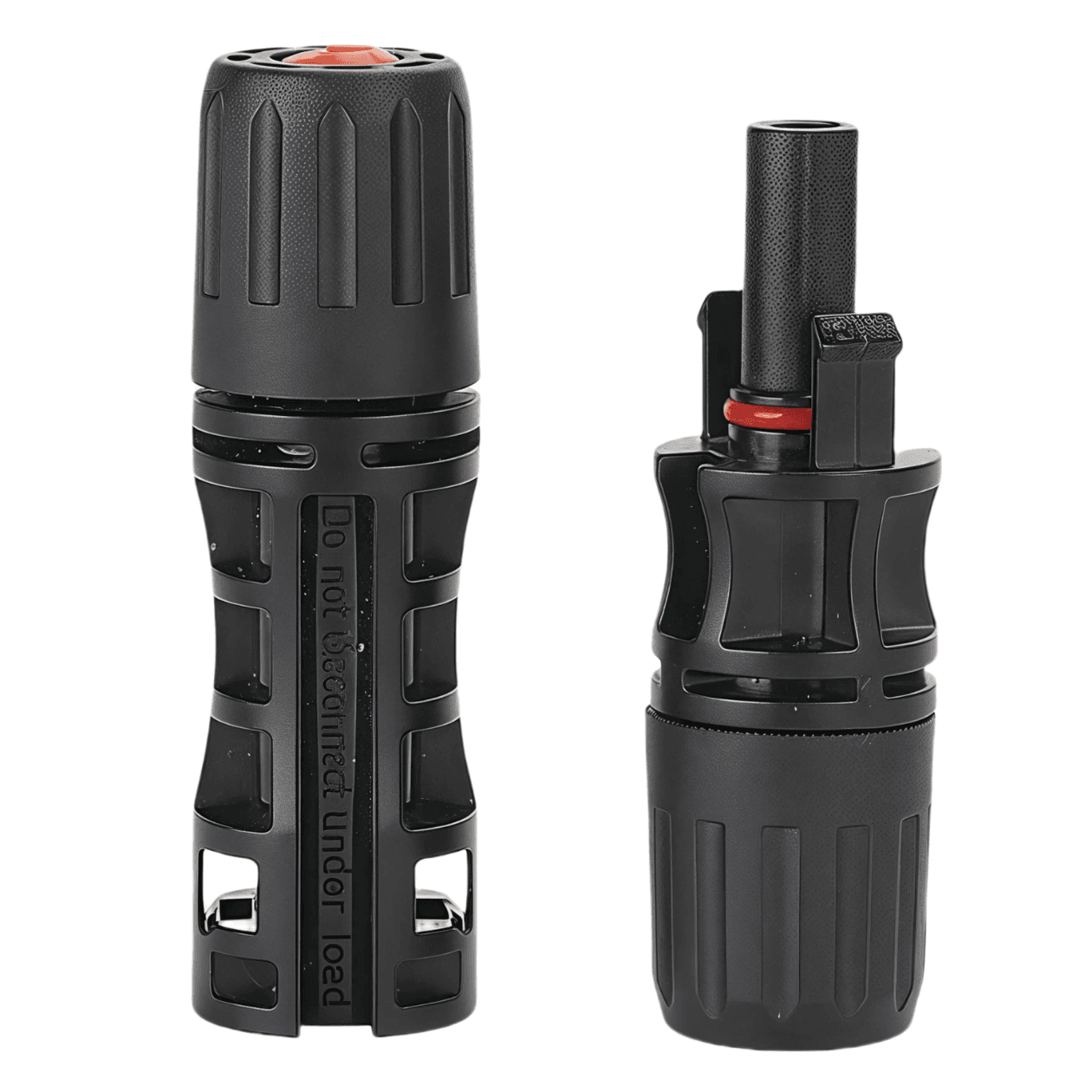

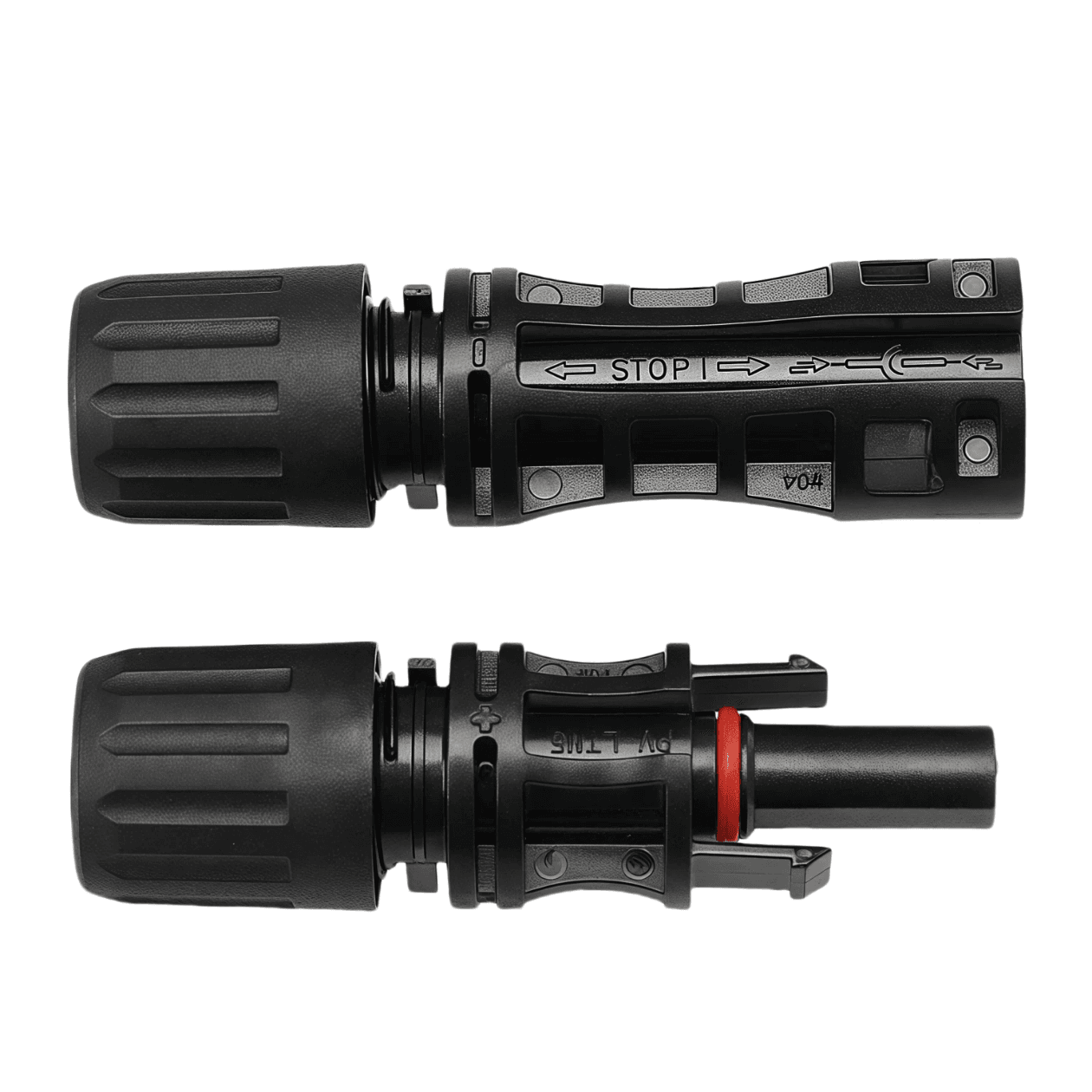

MC4 30A 1000V DC Connector (Pair)

The PV MC4 Connector offers a high voltage and current rating of 1000V DC / 30A, making it ideal for demanding solar applications. It is certified to ensure compliance with international photovoltaic standards. With an IP67 protection rating, it performs reliably in outdoor environments, while its ultra-low contact resistance (≤0.5mΩ) enhances conductivity and system efficiency. Designed to accommodate cable sizes from 2.5mm² to 6mm², it operates effectively across extreme temperature ranges from -40°C to +85°C. Built from flame-retardant PC EXL 9330, the connector is both durable and safe. Its secure locking mechanism, tool-free installation, and precision engineering help minimize power loss and simplify deployment.

Features:

• Rated Voltage: 1000V DC
• Rated Current: 30A
• Standard: IEC 62852
• Protection Degree: IP67 (dust-tight and water-resistant)
• Contact Resistance: ≤0.5mΩ
• Pollution Degree: 2
• Ambient Temperature: -40°C to +85°C

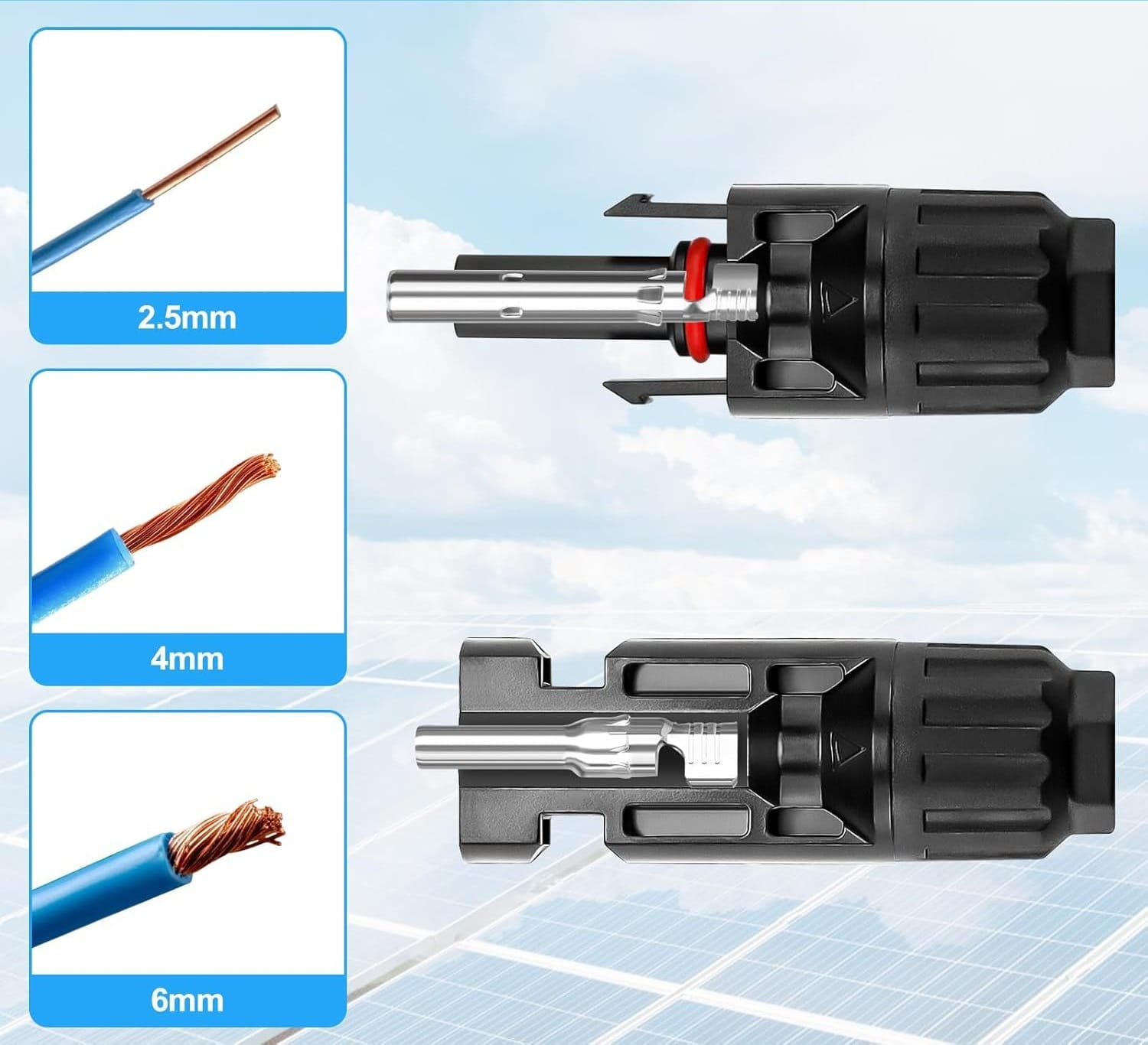

• Cable Cross Section Area: 2.5mm², 4mm², 6mm²
• Insulation Material: PC EXL 9330

Common Uses :

• Solar panel interconnection in residential, commercial, and utility-scale systems
• DC wiring in off-grid solar systems
• Solar-powered street lighting and remote monitoring setups
• Renewable energy installations requiring durable and waterproof connections
