MC4 30A 1000V DC Connector (Pair)
MC4 30A 1000V DC Connector (Pair) ₦ 2,000
Hot
Click to enlarge

    MC4 Connector (M-FF & F-MM)

    ₦ 6,500

    Fast Shipping

    Technical Support

    Nationwide Delivery

    To all 36 States

    Description

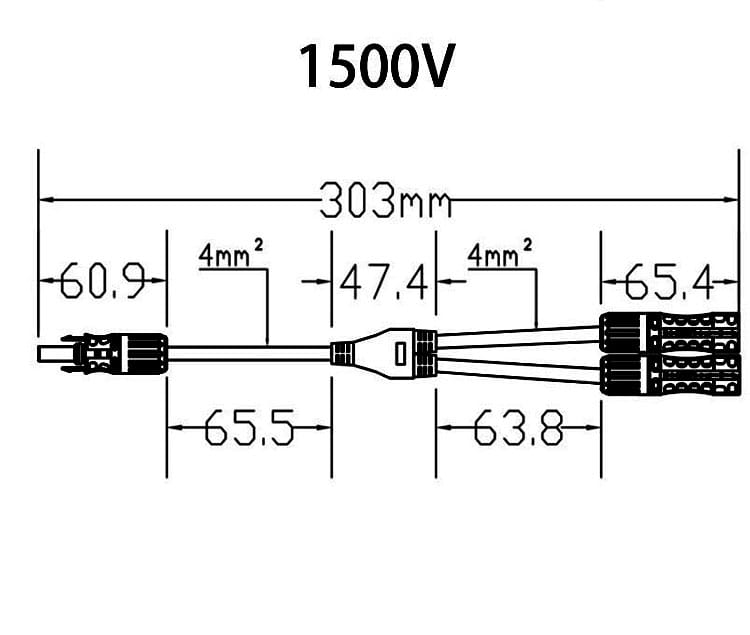

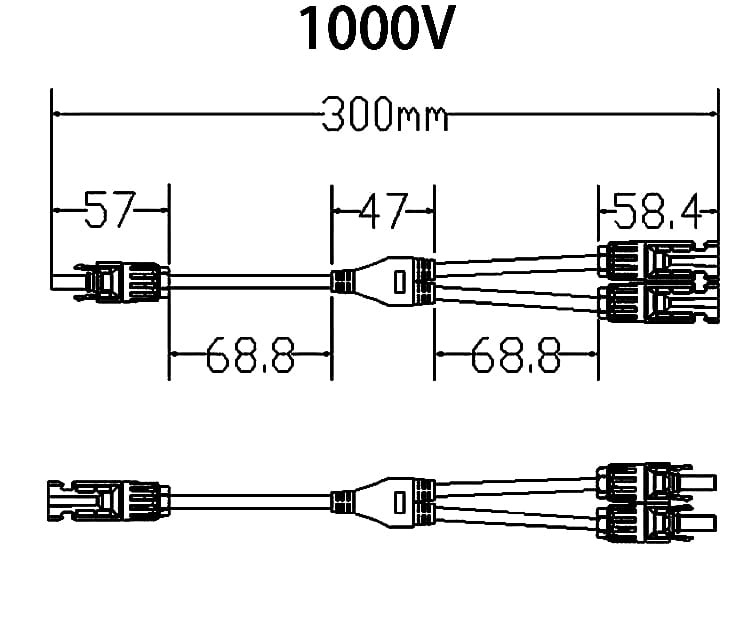

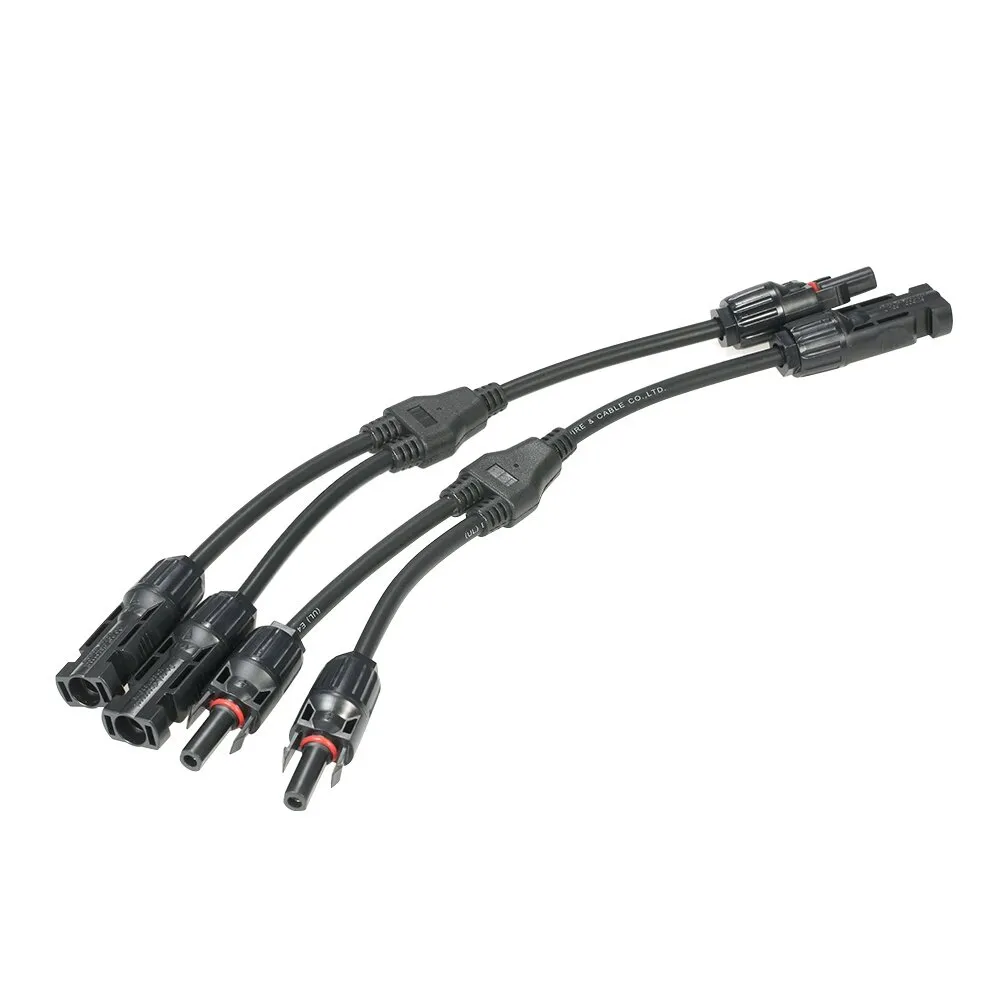

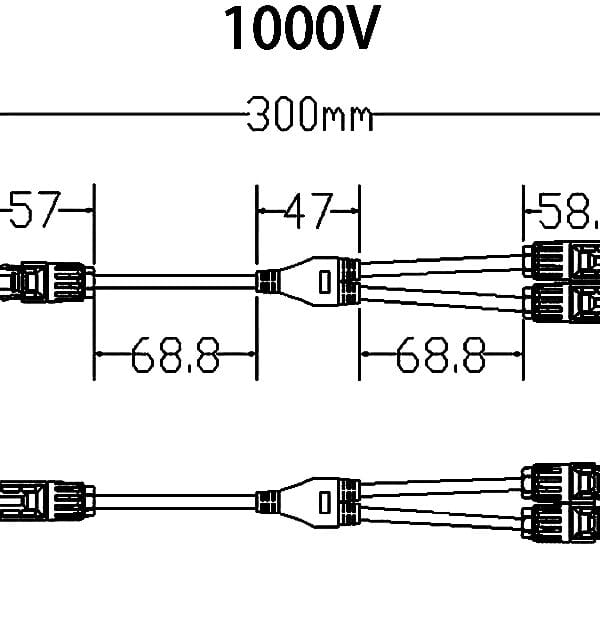

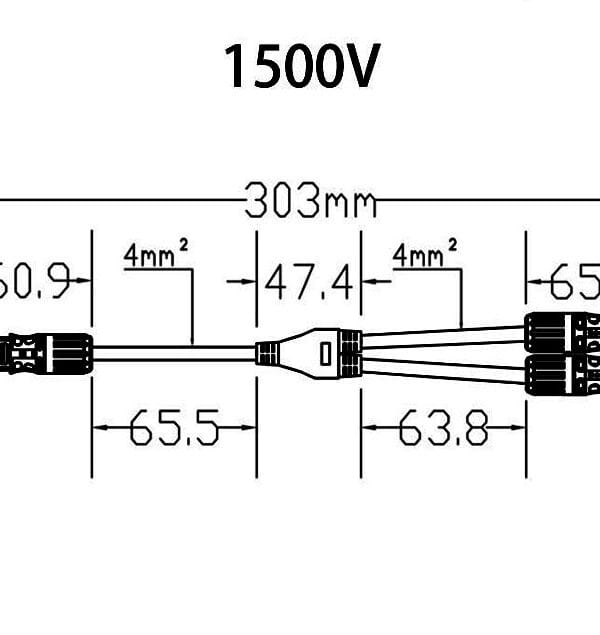

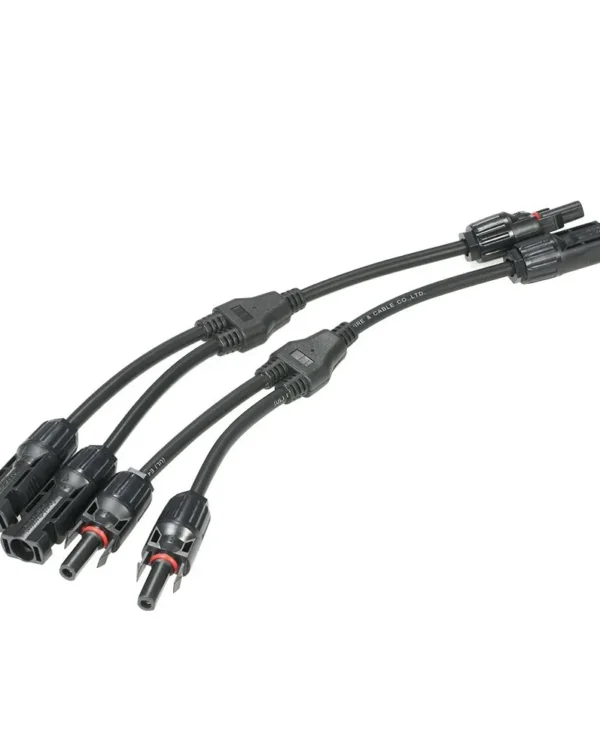

    The Solar Panel Y Branch Parallel PV Adapter Cable play a crucial role in facilitating the parallel wiring of solar panels, specifically photovoltaic (PV) modules. Available in pairs, these 1000V rated voltage and a robust 30A rated current specialized “Y-Connectors” with IP68 waterproof and hard plastic UL94-VO material are designed to contribute to the efficiency and longevity of your solar power system.

    Key Technical Specifications:
      • Configuration: 1 male to 2 female (M/FF) and 1 female to 2 male (F/MM).
      • Rated Voltage: Typically 1000V DC or 1500V DC.
      • Rated Current: 30A to 50A depending on wire gauge.
      • Contact Material: Copper with tin plating for minimal resistance.
      • Insulation Material: PPO or PC material resists UV degradation.
      • Waterproof Rating: IP67 or IP68 certified protection.
      • Temperature Range: -40°C to +85°C operating threshold.

    Core Functions:
      • Parallel Wiring: Combines two input panels into one single output.
      • Current Boosting: Doubles the amperage while keeping voltage constant.
      • Amperage Management: Prevents over-current using heavy-duty internal terminal pins.

    Key Installation Steps:
      1. Power Off: Disconnect all panels from the inverter or charge controller.
      2. Match Polarities: Connect positive cables to the F/MM adapter branches.
      3. Connect Negatives: Connect negative cables to the M/FF adapter branches.
      4. Lock Joint: Push male and female ends together until they click.
      5. Secure Cables: Use UV-rated zip ties to prevent cable sagging.

    Critical Safety Rules:
    • Do not disconnect connectors while the solar panels are under electrical load.
    • Verify total combined current does not exceed the charge controller limit.
    • Ensure the integrated waterproof O-ring is fully seated before locking.
