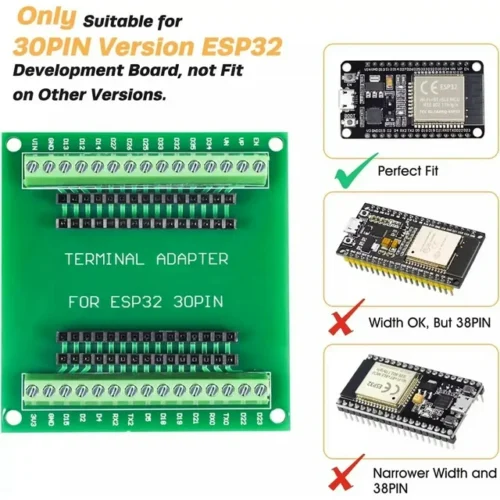

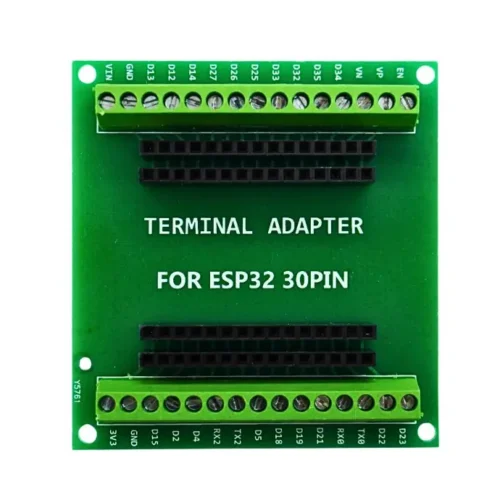

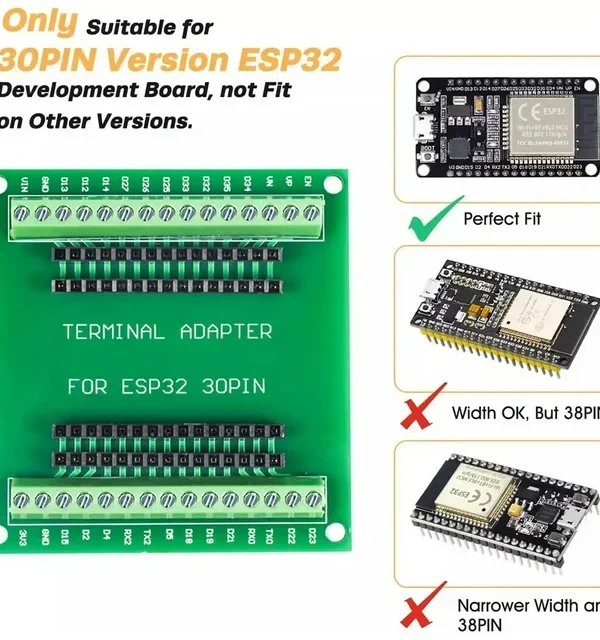

ESP32 Terminal Adapter (30P)

The ESP32 Terminal Adapter is an expansion board that breaks out the development board’s pins into screw terminals, allowing for secure, solderless wiring. These adapters are primarily designed for ESP32 DevKit V1 30-pin modules and are used in prototyping, IoT projects, and industrial control applications.

• – Expander Shield for ESP32
• – Number of ports: 30
• – Direct connection to ESP32 ports
• – Easy installation
• – KRE connectors with screws
• – Does not come with Esp32
• – Distance between pin bar: 25mm
• – Pitch: 2.54mm
• – Dimensions: 70 x 60 x 12mm
• – Weight: 68g.

Package Includes:

• 1x ESP32 Expansion Shield (30P)
