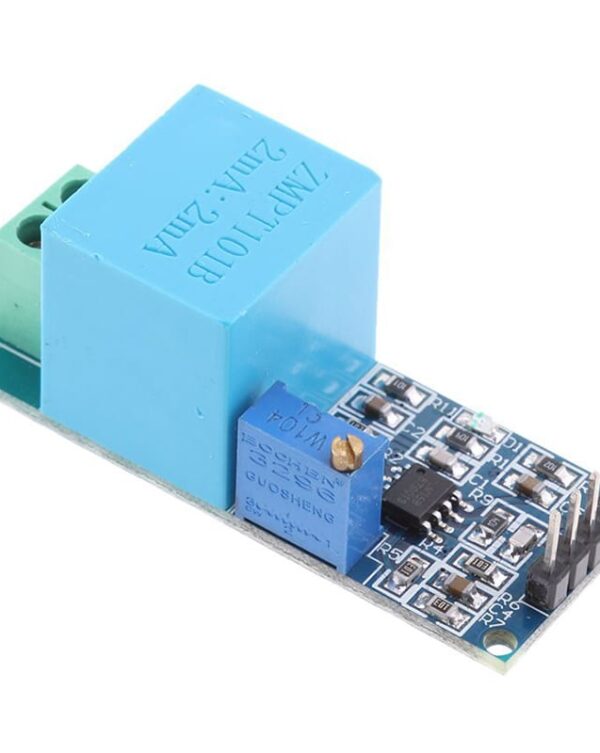

ZMPT101B AC Voltage Transformer Module

The Single Phase AC Active Output Voltage Transformer, Voltage Sensor Module is designed to accurately measure AC voltage in single-phase systems. This module is ideal for use in various applications, including energy monitoring, home automation, and industrial control systems, providing reliable and precise voltage readings.

Key Features:

• High Accuracy: Provides precise voltage measurements.
• Wide Voltage Range: Suitable for a wide range of AC voltages.
• Active Output: Delivers active voltage output proportional to the input AC voltage.
• Easy Integration: Simple to integrate with microcontrollers and other monitoring systems.
• Compact Design: Small and lightweight for easy installation.
• Isolation: Provides electrical isolation between the input and output.

Technical Specifications:

• Input Voltage Range: 0-250V AC
• Output Voltage Range: 0-5V DC (proportional to input AC voltage)
• Accuracy: ±1%
• Operating Temperature Range: -40°C to +85°C
• Isolation Voltage: 3000V AC
• Response Time: < 200ms
• Frequency Range: 50/60Hz
• Power Supply: 5V DC
• Dimensions: 40mm x 25mm x 15mm

Applications:

• Energy Monitoring: Used in energy meters and power monitoring systems.
• Home Automation: Integrates into smart home systems for voltage monitoring.
• Industrial Control: Suitable for industrial automation and control systems.
• Power Quality Monitoring: Helps in monitoring and analyzing power quality.
• Safety Systems: Used in safety monitoring and alarm systems.
