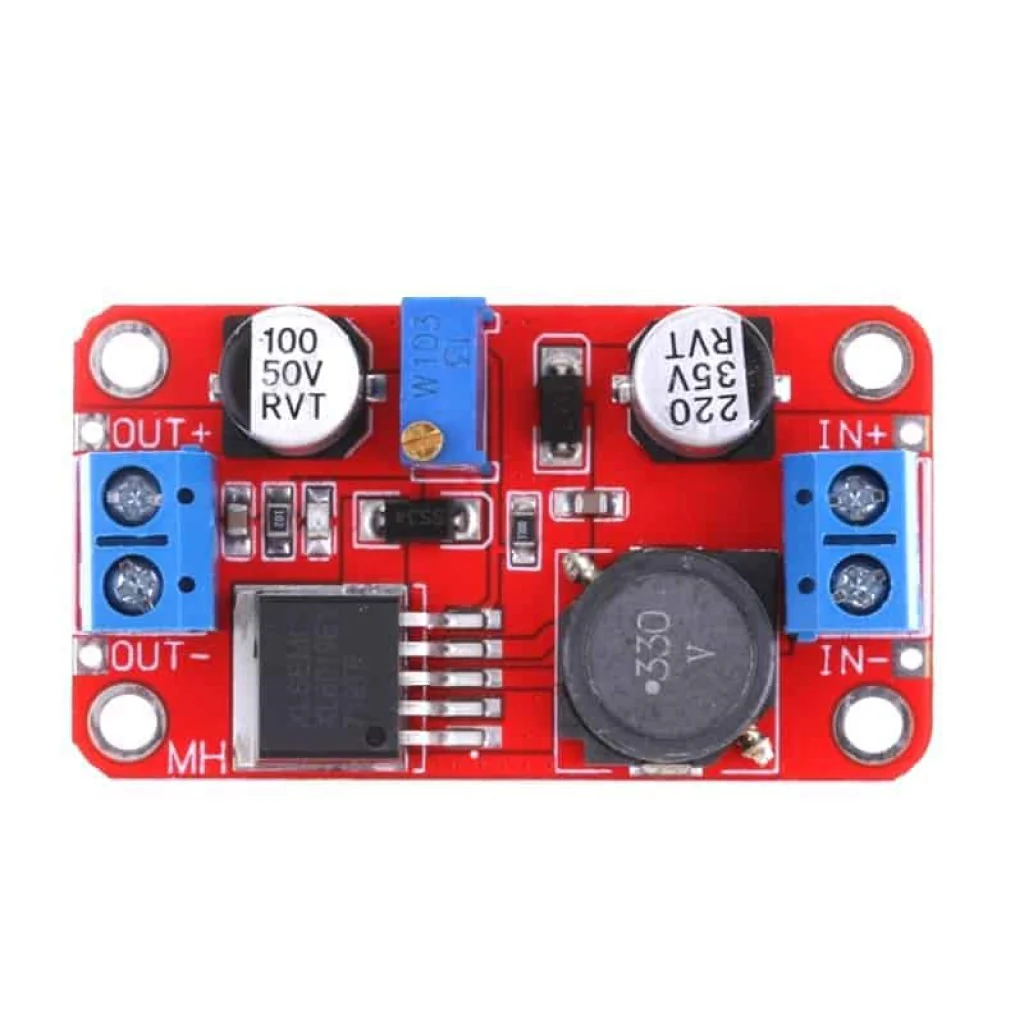

XL6019 5A DC-DC Step Up Power Module

The XL6019 5A DC-DC Boost Converter Module is a high-efficiency step-up power supply designed to increase a lower DC input voltage to a higher adjustable output voltage. It is well suited for battery-powered systems, solar applications, and electronic projects where voltage boosting is required.

With a wide input voltage range, adjustable output, and built-in protection features, the XL6019 provides stable, reliable, and efficient power conversion for both professional and DIY applications.

Features:

• High-efficiency DC-DC boost (step-up) converter
• Maximum output current up to 5A
• Wide input voltage range
• Adjustable output voltage via onboard potentiometer
• High conversion efficiency (up to 94%)
• Built-in overcurrent and thermal protection
• Compact and durable module design

Specification:

• Input Voltage Range: 3V – 32V DC
• Output Voltage Range: 5V – 35V DC (adjustable)
• Maximum Output Current: 5A
• Efficiency: Up to 94%
• Switching Frequency: 180kHz
• Output Ripple: < 50mV
• Operating Temperature: –40°C to +85°C
• Module Dimensions: 49mm × 23.4mm × 11.4mm

Applications:

• Battery-powered electronics
• Portable and handheld devices
• Solar power and energy systems
• Robotics and automation projects
• DIY electronics and prototyping
• General DC voltage boosting applications

Notes & Usage Tips:

• Output voltage should always be set before connecting sensitive loads.
• Adequate cooling is recommended when operating near maximum current.
• Input voltage must always be lower than the desired output voltage for proper boost operation.
