Description

It is a USB Touch Table Lamp Dimmer LED Driver 0-100% Stepless Dimmer Module Charging Protection Circuit.

Feature:

  • Dimming smooth eye protection without screen flash;
  • Capacitive touch sensing, anti-interference, high sensitivity, long life;
  • Board with battery overcharge and overdischarge protection, lithium battery can not need to protect the board.

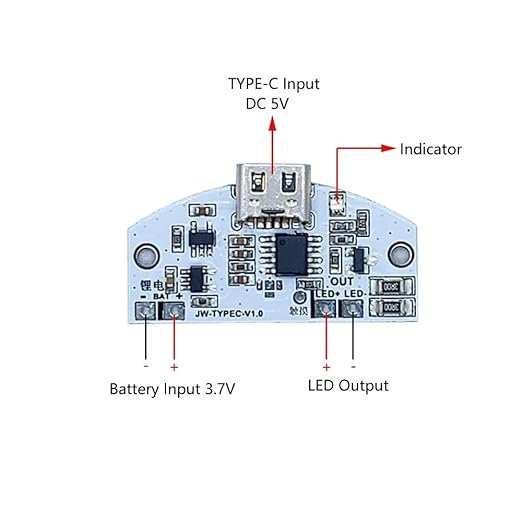

Parameter:

  • Product name: TYPED Lithium charging eye protection touch dimming module
  • Charging voltage: TYPE-C input DC 5V
  • Charging indicator: When there is no battery, the green light is on when inserting 5V, the red light is on when charging, and the green light turns when full
  • Charging current: About450-500mA
  • Battery input: connected to 3.7V polymer or single 18650 lithium battery
  • Output voltage: Isobaric output
  • Output power: The maximum power is 2A and the total power is 8W
  • Induction mode: capacitive human touch induction
  • Inductive penetration: 0-3mm(customizable sensitivity)
  • Work Temperature: -25℃~85℃
  • Work Humidity: 5%~95%RH
  • Size: 35x17mm

Package:

  • 1x Type-C Eye Protection Touch Dimming Module
