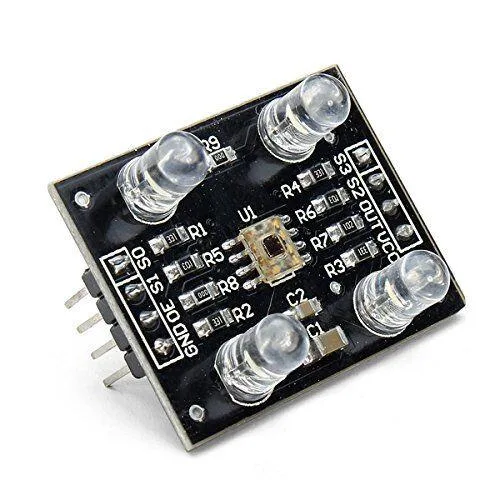

TCS230 Color Sensor

The TCS3200 RGB sensor chip and 4 white LEDs and can detect and measure a nearly limitless range of visible colors. Applications include test strip reading, sorting by color, ambient light sensing and calibration, and color matching, to name just a few.

The TCS3200 has an array of photodetectors, each with either a red, green, or blue filter, or no filter (clear).The device produces a square-wave output whose frequency is proportional to the intensity of the chosen color.

SPECIFICATIONS

•         Power: (2.7V to 5.5V)
•         Interface:Digital TTL
•         High-Resolution Conversion of Light Intensity to Frequency
•         Programmable Color and Full-Scale Output Frequency
•         Power Down Feature
•         Communicates Directly to Microcontroller
•         Size: 28.4×28.4mm(1.12×1.12″)
