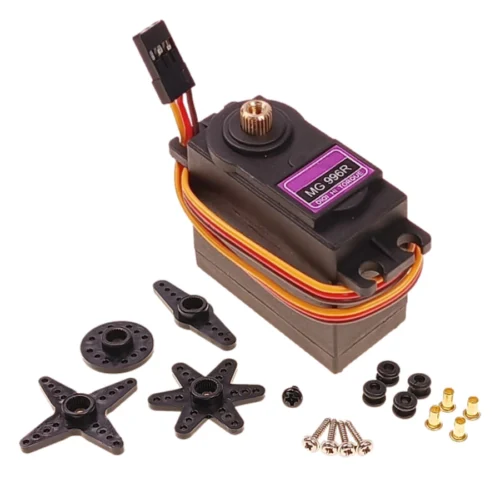

Servo Motor MG996R (Metal Gear)

The MG996R is a high-torque, high-performance servo motor designed for applications requiring strong and precise control of mechanical movements. It features metal gears for enhanced durability and reliability, making it suitable for demanding tasks in robotics, RC vehicles, and other mechanical systems. The MG996R offers a combination of high torque, speed, and precision, making it a popular choice for various hobby and professional applications.

Key Features:

• Metal gear construction for increased strength and durability
• High torque output for demanding applications
• Precision control for accurate positioning
• Wide operating voltage range for versatility
• High-speed operation for quick responses
• Suitable for both continuous and positional control applications

Technical Specifications:

• Operating Voltage: 4.8V to 6.8V
• Torque (at 4.8V): 9.4 kg·cm (130 oz·in)
• Torque (at 6.0V): 11.2 kg·cm (155 oz·in)
• Speed (at 4.8V): 0.20 sec/60° (typical)
• Speed (at 6.0V): 0.16 sec/60° (typical)
• Operating Temperature Range: -10°C to +60°C
• Gear Material: Metal
• Control System: PWM (Pulse Width Modulation)

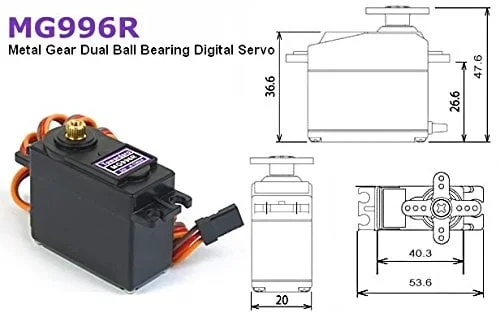

• Package Type: Standard servo dimensions

Applications:

• Robotics (e.g., robotic arms, legs)
• RC vehicles (e.g., cars, boats, airplanes)
• Mechanical actuators
• Model aircraft and helicopters
• Automated control systems
• DIY and hobby projects

Usage:

1. Connect the servo’s control wire to a PWM signal source, such as a microcontroller or RC receiver.
2. Power the servo with a suitable voltage within the operating range.
3. Configure the control signal to adjust the servo’s position and speed as needed.
4. Mount the servo securely in your project to ensure proper operation and avoid mechanical stress.

Caution:

• Avoid exceeding the recommended voltage and current ratings to prevent damage.
• Ensure proper cooling and ventilation if operating at high torque levels.
• Handle with care to avoid mechanical damage to the gears and internal components.
