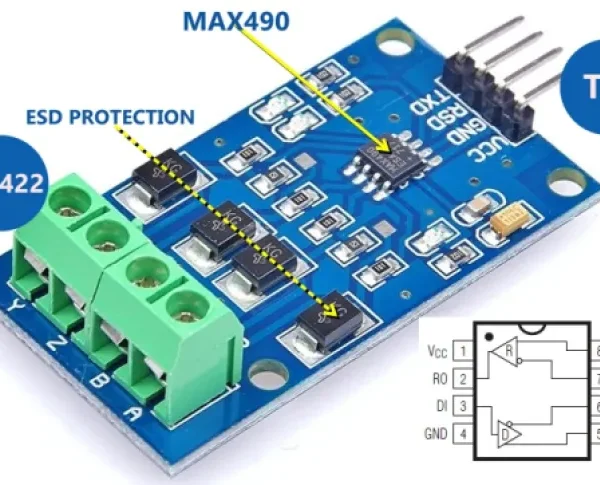

RS422 to TTL MAX490 Converter Module

The MAX490 Bidirectional RS422 to TTL Module is a robust and efficient interface solution designed for reliable communication between RS422 and TTL devices. This module enables seamless data transmission and reception, making it ideal for industrial control, instrumentation, and communication systems.

Key Features:

• Bidirectional Communication: Supports data transfer in both directions between RS422 and TTL.
• High-Speed Data Transfer: Capable of high-speed communication up to 2.5 Mbps.
• Noise Immunity: Enhanced noise immunity for reliable performance in noisy environments.
• ESD Protection: Built-in ESD protection to safeguard the module from electrostatic discharge.
• Compact Design: Small form factor for easy integration into various applications.
• Low Power Consumption: Energy-efficient operation with minimal power requirements.

Technical Specifications:

• Communication Protocol: RS422 to TTL
• Data Rate: Up to 2.5 Mbps
• Operating Voltage: 4.75V to 5.25V DC
• ESD Protection: ±15kV Human Body Model (HBM)
• Temperature Range: -40°C to +85°C
• Dimensions: Compact size for versatile application integration
• Weight: Lightweight for minimal impact on overall system weight

Applications:

• Industrial Automation: Reliable communication interface for industrial control systems.
• Instrumentation: Ideal for data acquisition and instrumentation systems.
• Communication Systems: Enhances data transfer between RS422 and TTL devices in communication setups.
• Embedded Systems: Suitable for integration into embedded systems requiring RS422 to TTL conversion.
• Robotics: Ensures accurate data transmission in robotic control and feedback systems
