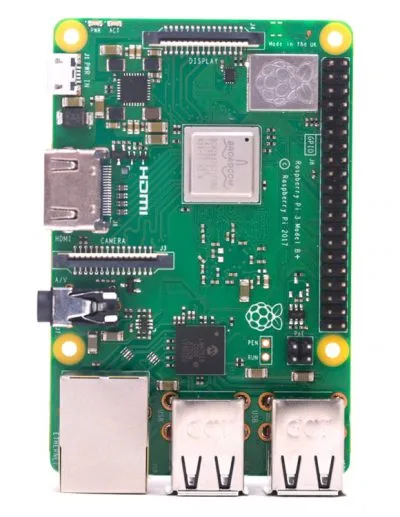

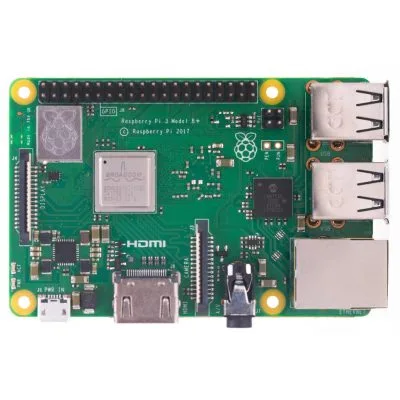

Raspberry Pi 3 Model B+

The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range, boasting a 64-bit quad core processor running at 1.4GHz, dual-band 2.4GHz and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT.

The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market.

The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B.

Technical Specification:

Processor: Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4GHz

Memory: 1GB LPDDR2 SDRAM

Connectivity:

2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE

Gigabit Ethernet over USB 2.0 (maximum throughput?300Mbps)

4 x USB 2.0 ports

Access: Extended 40-pin GPIO header

Video & Sound:

1 x full size HDMI

MIPI DSI display port

MIPI CSI camera port

4 pole stereo output and composite video port

Multimedia: H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30); OpenGL ES 1.1, 2.0 graphics

SD Card Support: Micro SD format for loading operating system and data storage

Input Power:

5V/2.5A DC via micro-USB connector

5V DC via GPIO header

Power over Ethernet (PoE)-enabled (requires separate PoE HAT)

Environment: Operating temperature, 0-50c
