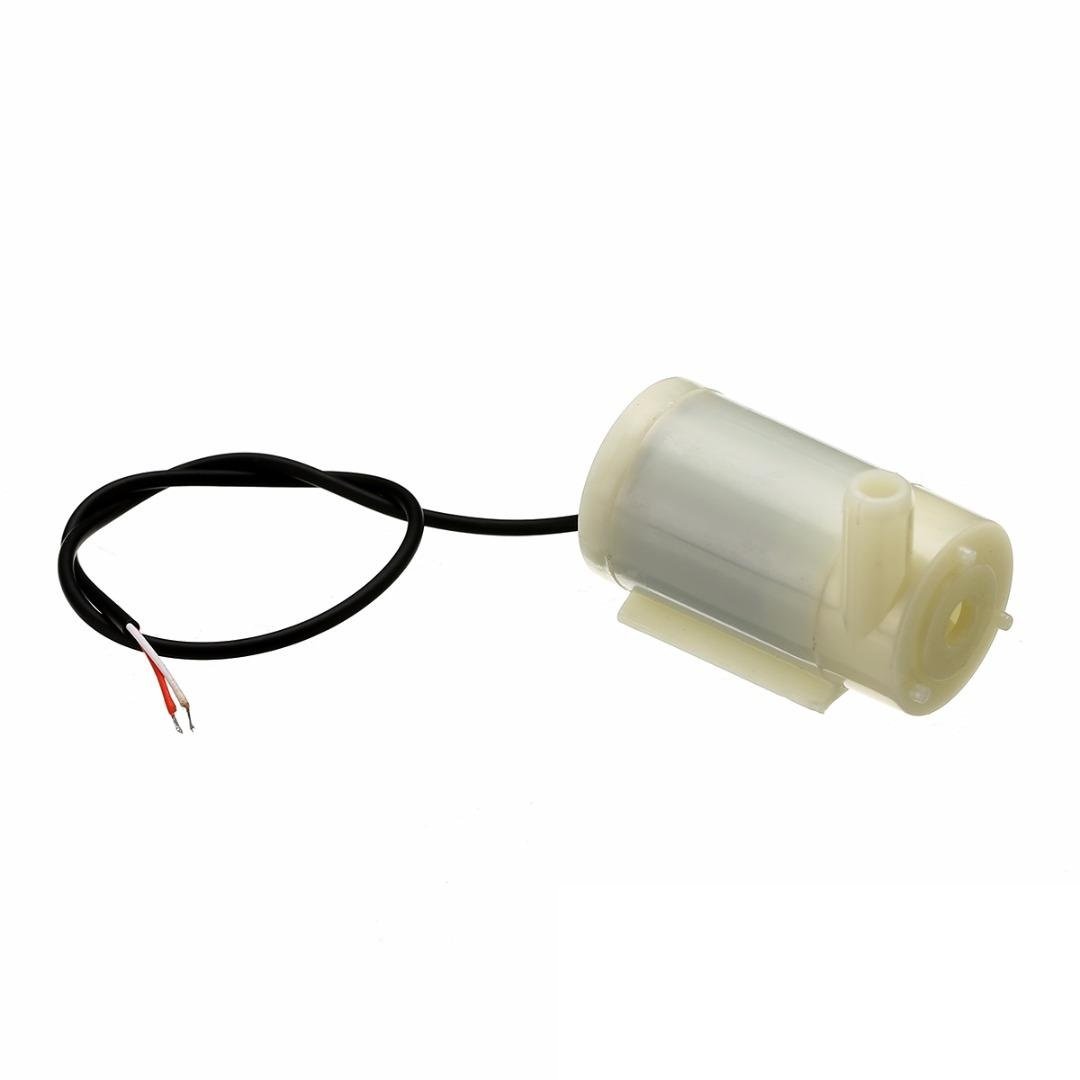

Mini Submersible Water Pump
₦ 2,000
This simple DC submersible pump allows you to pump water at a rate of up to 120L/H and operates at 3-5V
Features
- DC Voltage: 3-6V
- Maximum lift:40-110cm / 15.75″-43.4″
- Flow rate:80-120L/H
- Outside diameter of water outlet: 7.5mm / 0.3″
- Inside diameter of water outlet: 4.7mm / 0.18″
- Diameter:Approx. 24mm / 0.95″
- Length:Approx. 45mm / 1.8″
- Height:Approx. 33mm / 1.30″
- Plastic
- Driving mode: Brushless DC Motor
- Continuous working life of 500 hours
Out of stock
