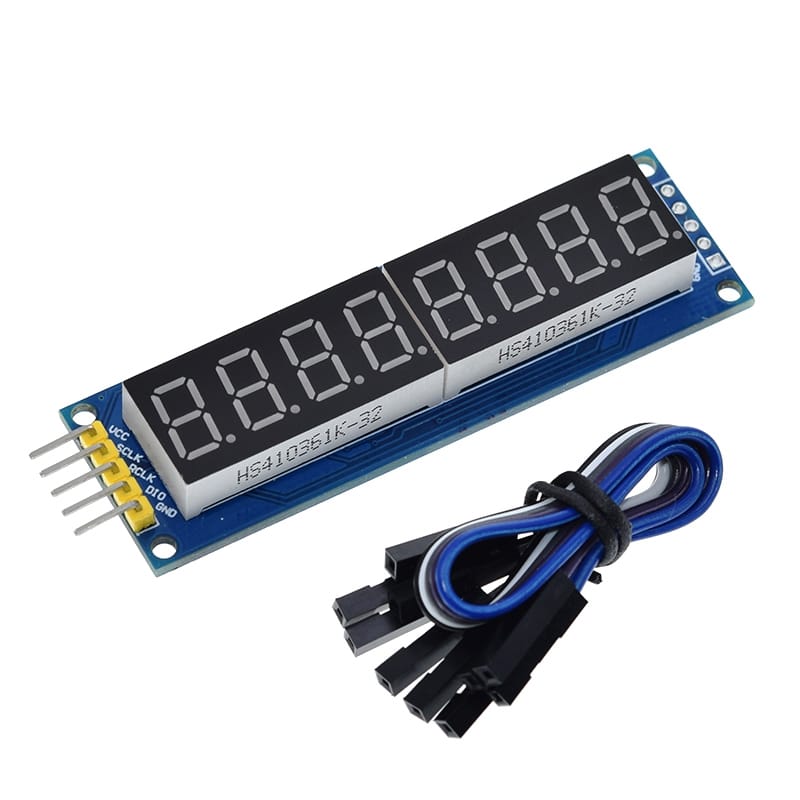

MAX7219 8 Digit LED Display Module

The MAX7219 Digital Tube Display Module Control Module is a versatile and efficient display driver designed for controlling 7-segment LED displays, bar graphs, or individual LEDs. It integrates a four-wire serial interface, making it compatible with all common microcontrollers and microprocessors. The module allows for addressing and updating individual data without rewriting the entire display, and it supports both encoded and non-encoded data selection. The MAX7219 features an on-chip BCD encoder, multi-channel scanning loop, segment word driver, and 8×8 static RAM for data storage. It only requires a single external register to set the current for each LED segment. The module also includes a low-power shutdown mode (150μA), analog and digital brightness control, and a scan-limit register that can display 1-8 bits of data. Additionally, it supports an all-LED light detection mode for enhanced functionality and control.

Features:

• Three IO Ports: Only requires three IO ports to drive an 8-bit digital tube.
• Wide Compatibility: Compatible with 5V/3.3V microcontrollers (51, AVR, STM32) and Raspberry Pi.
• Compact Size: Small and space-saving, suitable for tight installations with dimensions of 83 x 15 x 17 mm.
• Enhanced Safety: PCB board features fixed copper studs on all four corners to effectively prevent short circuit accidents.
• Versatile Use: Ideal for various applications requiring simple, reliable digital display control.

Specifications:

• Display Type: 8 digit 7 segment display
• Digit Count: 8 digits
• Driver IC: MAX7219
• Operating Current (mA): 330
• Operating Temperature (°C): -40 ~ +85
• Serial Interfaces: 10MHz
• Length × Width × Height(mm) : 83 × 15 × 17
• Weight (gm) : 20

Applications:

• Used in digital clocks to display time on 7-segment displays.
• Ideal for sports scoreboards to display points or scores.
• Suitable for displaying temperature or humidity readings in weather stations.
• Can be used in voltage meters to show real-time voltage or sensor data.
• Useful in data logging devices for displaying measurements from various sensors.
• Common in DIY electronics projects, including timers, counters, and indicators.
• Employed in control panels for industrial automation systems to show status or output data.
• Used in information display systems to show system status, alerts, or readings.
• Applied in educational kits for teaching microcontroller interfacing and display control.

Wiring Instructions:

• VCC to 5V
• GND to GND
• DIN to P00
• CLK to P02
• CS to P01
