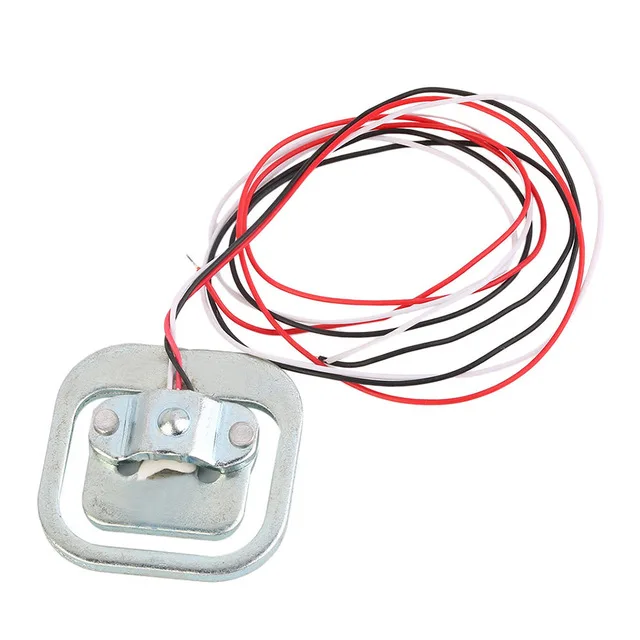

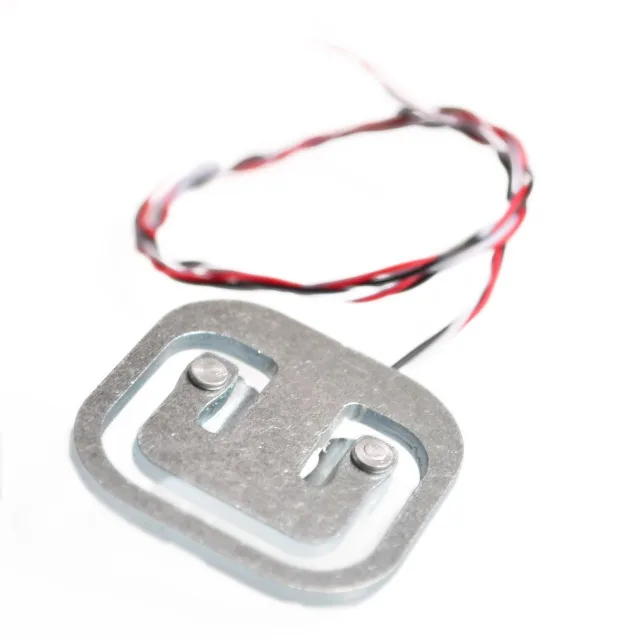

Load Cell Sensor 50kg

The 50kg Load Cell is a high-precision sensor designed for measuring weight and force in various applications. It converts mechanical force into an electrical signal, ensuring accurate and reliable measurements. This load cell is ideal for use in industrial weighing systems, force measurement applications, and electronic scales.

Key Features:

• High-precision weight measurement
• Capacity: 50kg
• Robust and durable design
• High sensitivity and accuracy
• Easy integration into various systems
• Temperature compensated

Technical Specifications:

• Capacity: 50kg
• Accuracy: ±0.1% of full scale
• Output Sensitivity: 2.0 ± 0.3 mV/V
• Safe Overload: 150% of rated capacity
• Ultimate Overload: 300% of rated capacity
• Input Resistance: 1000 ± 10Ω
• Output Resistance: 1000 ± 10Ω
• Insulation Resistance: ≥2000 MΩ at 50VDC
• Compensated Temperature Range: 0°C to +40°C
• Operating Temperature Range: -10°C to +70°C

Applications:

• Industrial weighing systems
• Force measurement applications
• Precision weight detection
• Process control
• Material testing

Usage:

1. Mount the load cell securely to ensure accurate measurement.
2. Connect the load cell to a compatible signal conditioning circuit or amplifier.
3. Calibrate the load cell according to the manufacturer’s instructions.
4. Integrate the load cell into your weighing or measurement system.
5. Regularly inspect and maintain the load cell for consistent performance.
