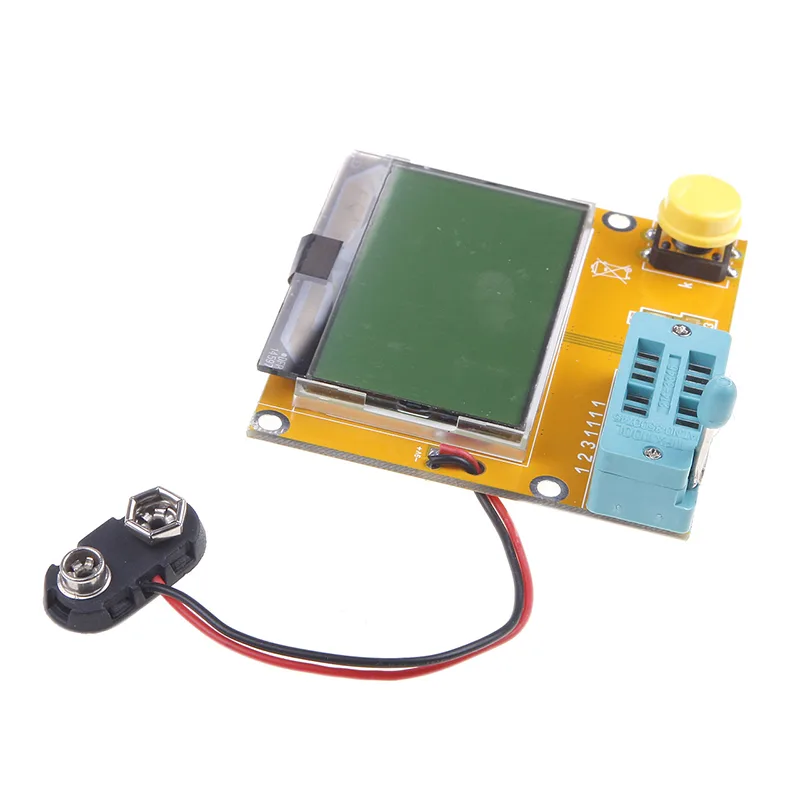

LCR-T4 Transistor, Diode, Triode Capacitance Meter

 8,000

The LCR-T4 is a multi-function meter for testing resistors, capacitors, diodes, transistors, mos-tubes, inductors.

2 in stock

The LCR-T4 is a multi-function meter for testing resistors, capacitors, diodes, transistors, mos-tubes, inductors. The unit is based on Atmega328 microcontroller and is battery powered. A graphic LCD displays all readings and information.



To put it simply, the LCR-T4 allows you to test almost discrete component with great ease!

Features

  • Automatic detection of NPN and PNP transistors , N -channel and P-channel MOSFET, diodes ( including dual diode ) , thyristors , transistors, resistors and capacitors and other components ,
  •  Measures the gate threshold voltage and gate capacitance of the MOSFET
  •  High test speed , valid component test: 2 seconds ( except in the larger capacitor of large capacitance measurement may take up to a minute)
  • One button operation
  • Power consumption off mode : less than 20 nA
  • Auto power off function to conserve battery life.
  • 9V Battery
  • Dimensions: 7.2 * 6.25cm (L * W)

Test Ranges

Inductors, Capacitors , Diodes, Dual diodes , MOS, Transistors, SCR , LED tube , Equivalent Series Resistance (ESR)

  • Resistance,Adjustable potentiometer
  • Resistance :0.1 Ohm resolution, maximum 50M Ohm
  • Capacitor :25pf -100,000 uf
  • Inductors : 0.01mh-20H
