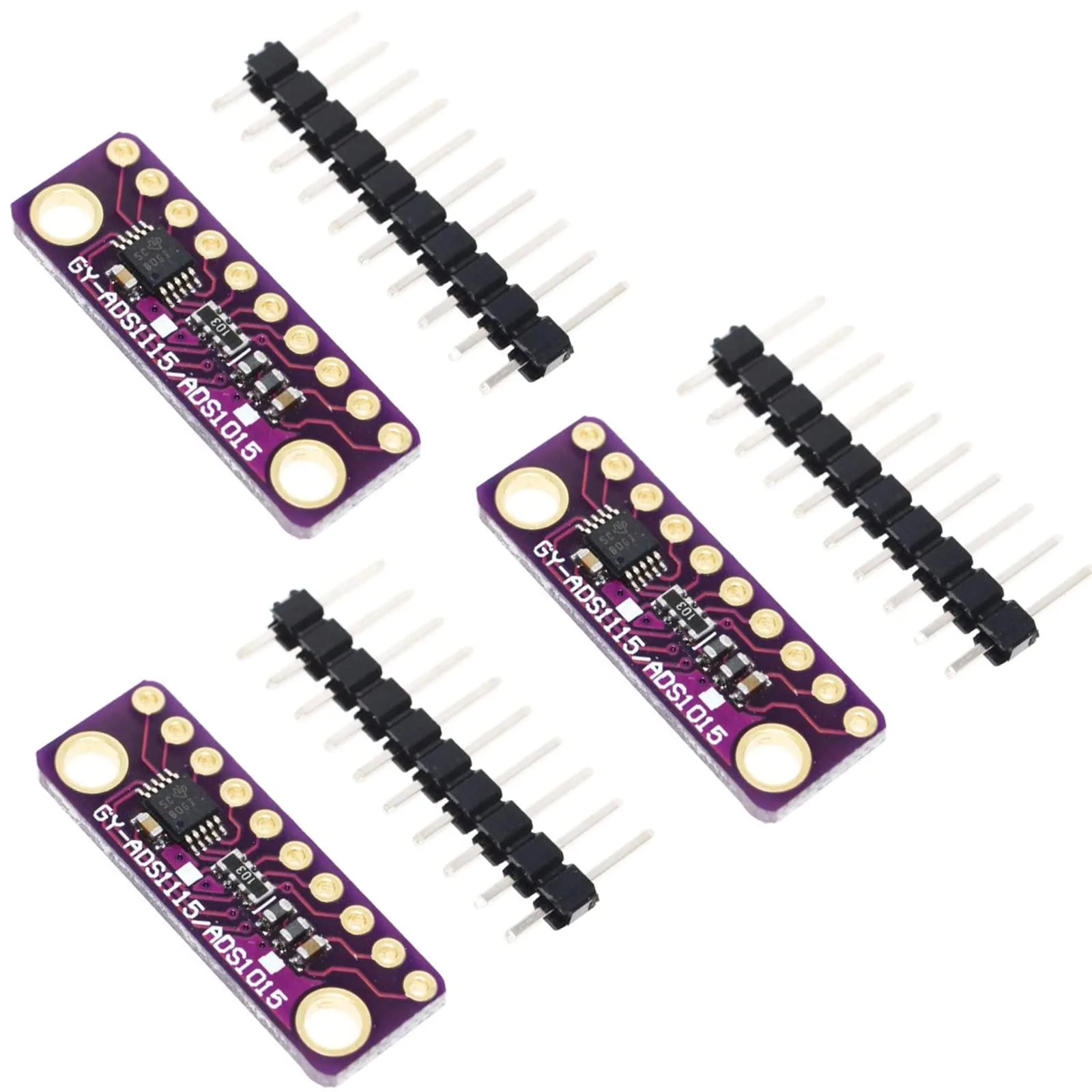

    I2C ADS1115 16 Bit ADC 4 Channel Module

    ₦ 6,000

    Out of stock

    Out of stock

    Fast Shipping

    Technical Support

    Nationwide Delivery

    To all 36 States

    Description

    The I2C ADS1115 16-Bit ADC 4-Channel Module is a high-precision analog-to-digital converter (ADC) designed to provide accurate and reliable data conversion for your projects. With 16-bit resolution, four input channels, and I2C communication, this module is perfect for interfacing analog sensors with microcontrollers like Arduino, Raspberry Pi, and ESP32. Its small size and advanced features make it an ideal choice for electronics enthusiasts and professionals alike.

    Key Features:

    • High Resolution: 16-bit ADC for precise and detailed signal conversion.
    • 4 Channels: Supports four single-ended inputs or two differential inputs for flexible sensor connections.
    • I2C Interface: Easy integration with microcontrollers using a standard two-wire I2C protocol.
    • Programmable Gain Amplifier (PGA): Adjustable gain for handling signals as low as ±256mV to as high as ±6.144V.
    • Low Power Consumption: Operates efficiently, making it suitable for battery-powered applications.
    • Wide Operating Voltage: Compatible with 2.0V to 5.5V systems, ensuring versatility in various setups.
    • Compact Design: Small PCB size for easy integration into space-constrained projects.

    Applications:

    • Sensor Interfacing: Perfect for reading analog signals from temperature, pressure, and light sensors.
    • Data Acquisition Systems: Ideal for precision measurements in industrial and lab environments.
    • Battery Monitoring: Measure voltages in multi-cell battery systems with accuracy.
    • DIY Electronics: Great for projects requiring high-resolution analog-to-digital conversion.

    Technical Specifications:

    • ADC Resolution: 16 bits
    • Channels: 4 single-ended or 2 differential inputs
    • Input Voltage Range: ±0.256V to ±6.144V (programmable)
    • Sampling Rate: Up to 860 samples per second (SPS)
    • Interface: I2C (7-bit address selectable)
    • Power Supply: 2.0V – 5.5V DC
    • Dimensions: Compact, lightweight module

    Enhance your projects with the I2C ADS1115 16-Bit ADC 4-Channel Module, delivering precise analog-to-digital conversion and seamless integration for all your data acquisition needs!
