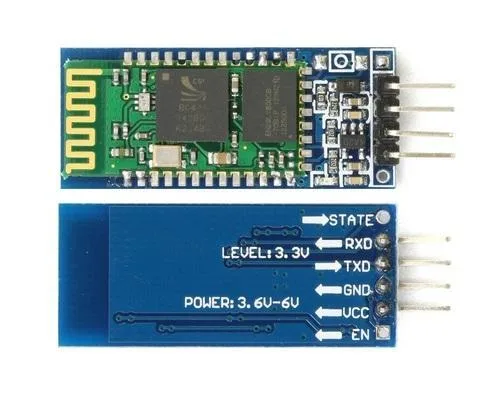

HC-06 Bluetooth Module

Name: HC-06 Bluetooth Module
SKU: NS-006
Availability: OutOfStock

₦ 9,500

Out of stock

Add to wishlist

Fast Shipping

Technical Support

Experienced technical support

Nationwide Delivery

To all 36 States

Description

HM-06 is a Bluetooth module designed for establishing short range wireless data communication between two microcontrollers or systems. The module works on Bluetooth 2.0 communication protocol and it can only act as a slave device. This is cheapest method for wireless data transmission and more flexible compared to other methods and it even can transmit files at speed up to 2.1Mb/s.

HC-06 uses frequency hopping spread spectrum technique (FHSS) to avoid interference with other devices and to have full duplex transmission. The device works on the frequency range from 2.402 GHz to 2.480GHz.

Pin configuration

HC-06 module has six pins as shown in the pinout. In them we only need to use four for successfully interfacing the module. Some breakout boards will only leave four output pins only because of this reason.

Pin	Name	Function
1	Key	The pin state determines whether the module works in AT command mode or normal mode [High=AT commands receiving mode(Commands response mode), Low or NC= Bluetooth module normally working]
2	Vcc	+5V Positive supply needs to be given to this pin for powering the module
3	Gnd	Connect to ground
4	TXD	Serial data is transmitted by module through this pin (at 9600bps by default), 3.3V logic
5	RXD	Serial data is received by module through this pin (at 9600bps by default),3.3V logic
6	State	The pin is connected to the LED on the board to represent the state of the module
