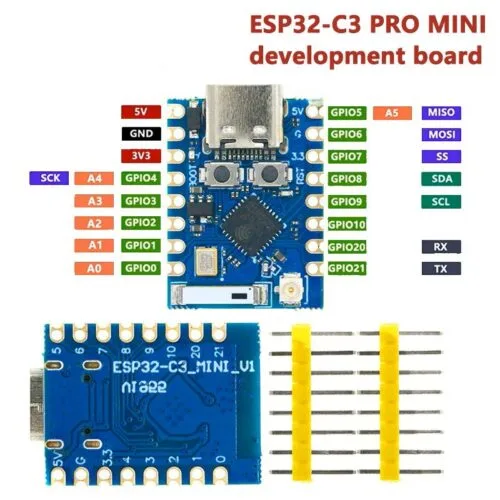

ESP32-C3 Pro Mini

ESP32-C3 Pro Mini is an IoT mini development board based on Espressif ESP32-C3 WiFi/Bluetooth dual-mode chip. ESP32-C3 is a 32-bit RISC-V CPU that includes an FPU (floating point unit) that can perform 32-bit single-precision operations and has powerful computing power. It has excellent RF performance and supports IEEE 802.11 b/g/n WiFi and Bluetooth 5 (LE) protocols. The board comes with a ceramic antenna and an IPEX antenna mount to enhance the signal strength of wireless applications. It also has a small and exquisite appearance combined with a single-sided surface mount design. It is equipped with rich interfaces, with 11 digital I/Os that can be used as PWM pins and 4 analog I/Os that can be used as ADC pins. It supports four serial interfaces such as UART, I2C and SPI. There is also a small reset button and a bootloader mode button on the board.

Based on the above features, ESP32C3SuperMini is positioned as a high-performance, low-power, and cost-effective IoT mini development board, suitable for low-power IoT applications and wireless wearable applications.

Features:

• Powerful CPU: ESP32-C3, 32-bit RISC-V single-core processor, running at up to 160 MHz
• WiFi: 802.11b/g/n protocol, 2.4GhHz, supports Station mode, SoftAP mode, SoftAP+Station mode, mixed mode
• Bluetooth: Bluetooth 5.0
• Ultra-low power consumption: Deep sleep power consumption is about 43μA
• Rich board resources: 400KB SRAM, 384KB ROM, built-in 4Mflash.
• Chip model: ESP32C3FN4
• Ultra-small size: as small as a thumb (22.52x18mm) Classic form factor, suitable for wearable devices and small projects
• Robust security features: Cryptographic hardware accelerator supporting AES-128/256, hashing, RSA, HMAC, digital signature, and secure boot
• Rich interfaces: 1xI2C, 1xSPI, 2xUART, 11xGPIO (PWM), 4xADC
• Single-sided components, surface mount design
• Onboard LED blue light:  GPIO 8 pin
