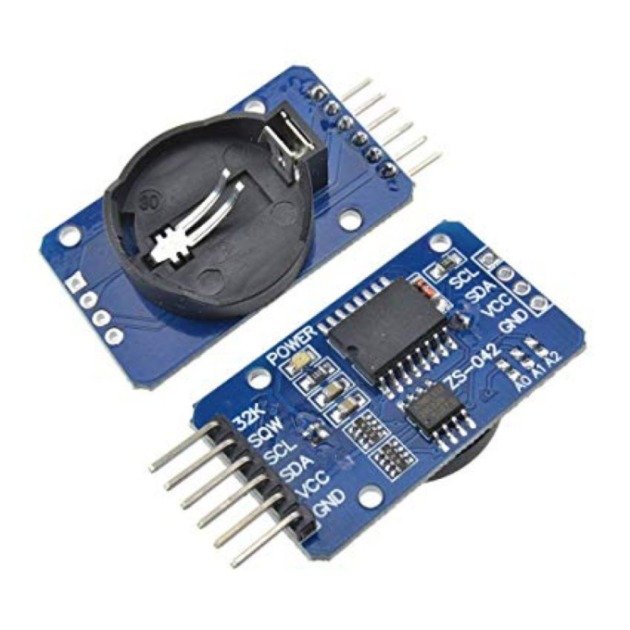

DS3231 Real Time Clock Module

The DS3231 is a high-precision, low-power real-time clock (RTC) module from Maxim Integrated. It provides accurate timekeeping with an integrated temperature-compensated crystal oscillator (TCXO) and battery backup. The DS3231 is commonly used in embedded systems, clocks, and time-sensitive applications where precise timekeeping is crucial.

Key Features:

• High-precision real-time clock with integrated TCXO
• Built-in battery backup for continuous operation
• Accurate timekeeping with ±2 minutes per year accuracy
• I2C interface for easy communication with microcontrollers
• Low power consumption
• Integrated temperature sensor

Technical Specifications:

• Timekeeping Accuracy: ±2 minutes per year (at +25°C)
• Clock Type: RTC with integrated TCXO
• Power Supply:
  • Operating Voltage: 1.8V to 5.5V
  • Backup Battery: CR2032 or similar
• Communication Interface: I2C
• Temperature Sensor: Integrated with ±3°C accuracy
• Real-Time Clock Functions: Seconds, minutes, hours, day, date, month, and year
• Temperature Range: -40°C to +85°C
• Package Type: Typically available in 16-pin SOIC or 20-pin QFN packages
• Power Consumption: Low power; typically <1µA in battery backup mode

Applications:

• Embedded systems requiring accurate timekeeping
• Clocks and timekeeping devices
• Data logging applications
• Industrial and automotive systems
• Portable devices

Usage:

1. Power Supply: Connect the module to the appropriate power source (1.8V to 5.5V). Ensure a backup battery is installed for continuous timekeeping during power outages.
2. I2C Connection: Interface with a microcontroller or development board using the I2C communication protocol (SDA and SCL pins).
3. Configuration: Set the time and date using I2C commands. Use the temperature sensor feature as needed.
4. Testing: Verify timekeeping accuracy and functionality by reading and setting the RTC values through I2C communication.

Caution:

• Properly connect the backup battery to ensure continuous timekeeping during power loss.
• Verify power supply voltage to avoid damage to the module.
• Follow the manufacturer’s guidelines for I2C communication and timekeeping accuracy.
