DM542 Digital Microstepping Stepper Driver 4.2A 18-50V DC

Name: DM542 Digital Microstepping Stepper Driver 4.2A 18-50V DC
SKU: NS-0012
Availability: InStock

₦ 30,850

Add to wishlist

Fast Shipping

Technical Support

Experienced technical support

Nationwide Delivery

To all 36 States

Description

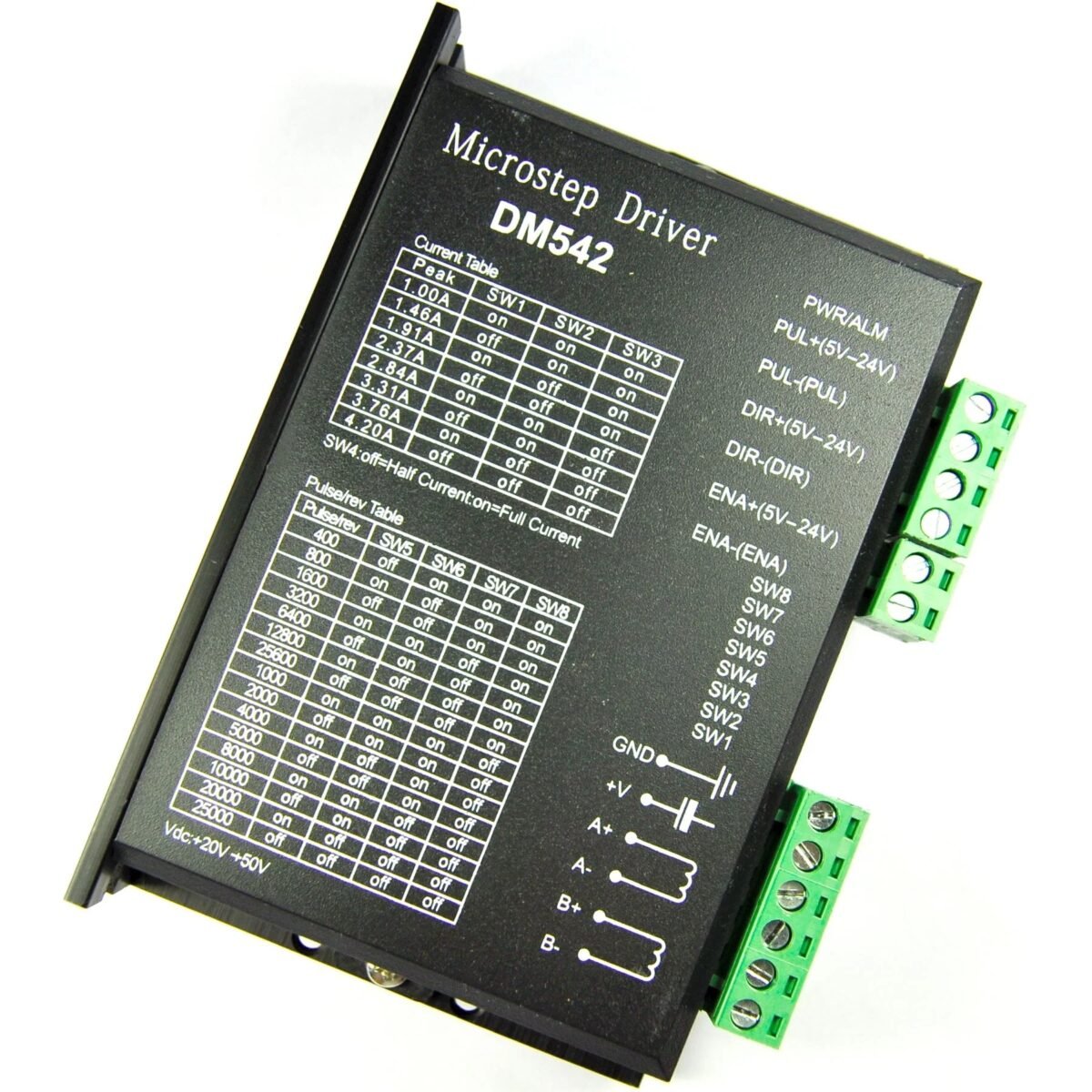

The DM542 is a fully digital stepper drive developed with advanced DSP control algorithm based on the latest motion control technology. It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability. Its motor auto-identification and parameter auto-configuration feature offers quick setup to optimal modes with different motors. Compared with traditional analog drives, DM542 can drive a stepper motor at much lower noise, lower heating, and smoother movement. Its unique features make DM542 an ideal choice for high requirement applications.

General Specifications:

DM542 digital stepper drive.
Anti-Resonance, provides optimum torque and nulls mid-range instability.
Input voltage 18-50VDC.
Output current programmable, from 1A to 4.2A.
Pulse input frequency up to 200 KHz.
Suitable for 2-phase and 4-phase motors.
Automatic idle-current reduction.
Over-voltage, over-current protection.
TTL compatible and optically isolated input.
Support PUL/DIR and CW/CCW modes.
Operating Temperature : 70 C.

Power and Motor Terminal Assignments:

Terminal No.	Terminal Name	Description
Terminal 1	+Vdc	Power supply, 20~30 VDC, Including voltage fluctuation and EMF voltage.
Terminal 2	GND	Power ground
Terminal 3	A+	Motor Phase A+
Terminal 4	A-	Motor Phase A-
Terminal 5	B+	Motor Phase B+
Terminal 6	B-	Motor Phase B-

Pulse and Direction Inputs:

Terminal No.	Terminal Name	Description
Terminal 1	PUL+	Pulse +ve input
Terminal 2	PUL-	Pulse -ve input
Terminal 3	DIR+	Direction +ve input
Terminal 4	DIR-	Direction -ve input
Terminal 5	ENA+	Enable +ve input
Terminal 6	ENA-	Enable -ve input
