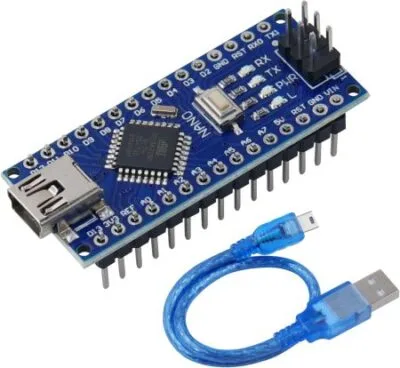

Arduino Nano V3.0 with Cable

The Arduino Nano V3.0 is a compact, breadboard-friendly microcontroller board based on the ATmega328P. It is part of the Arduino platform and is designed for use in small projects and prototyping. The board includes a USB cable for easy connection to a computer for programming and power.

Key Features:

• ATmega328P microcontroller
• Compact size with 30mm x 18mm dimensions
• 22 digital I/O pins, of which 6 can be used as PWM outputs
• 8 analog input pins
• 32 KB Flash memory for program storage
• 2 KB SRAM for data storage
• 1 KB EEPROM for non-volatile data storage
• Built-in USB interface for easy programming
• Compatible with Arduino IDE for development

Technical Specifications:

• Microcontroller: ATmega328P
• Operating Voltage: 5V
• Input Voltage: 7-12V (through the power jack or USB)
• Digital I/O Pins: 22
• PWM Output Pins: 6
• Analog Input Pins: 8
• Flash Memory: 32 KB
• SRAM: 2 KB
• EEPROM: 1 KB
• Clock Speed: 16 MHz
• USB Interface: Mini-USB
• Dimensions: 30mm x 18mm

Applications:

• Prototyping and development for electronics projects
• Embedded systems and automation
• Robotics
• Sensor interfacing and data acquisition
• Educational projects and learning

Usage:

1. Connection: Connect the Arduino Nano V3.0 to your computer using the included USB cable. The USB cable is used for both power and programming.
2. Programming: Use the Arduino IDE to write and upload code to the board via the USB connection.
3. Connection to Peripherals: Utilize the digital and analog I/O pins to connect sensors, actuators, and other peripherals.
4. Power Supply: The board can be powered through the USB connection or via an external power source connected to the VIN pin.

Caution:

• Ensure correct voltage levels are used to avoid damaging the board. The recommended input voltage is 7-12V.
• Avoid short-circuiting the pins and connections.
• Handle the board and USB cable with care to prevent physical damage.
