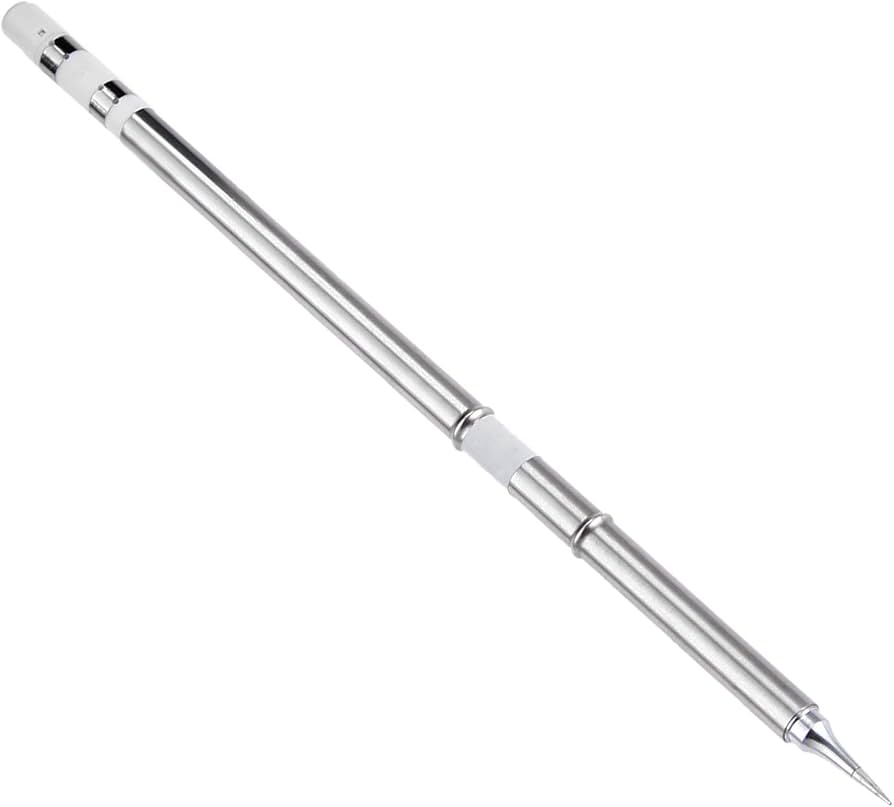

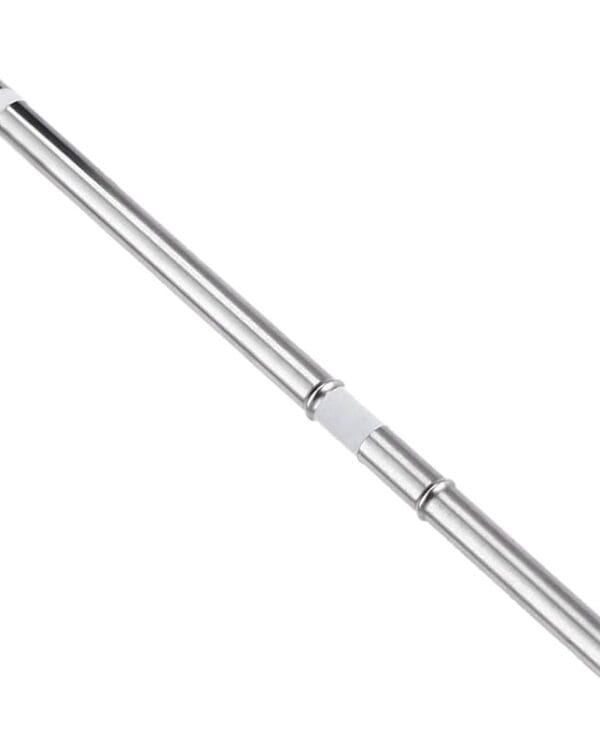

A12 ILS Solder Tip (T12 Pro)

The A12 ILS Solder Tip (often branded under the T12 Pro line or compatible with T12 series stations) is an ultrafine, straight conical soldering tip designed specifically for high-precision, micro-electronics work. Because the T12 architecture integrates the heating element, temperature sensor, and tip into a single composite unit, it delivers rapid heating and precise temperature recovery.

Key Specifications & Features:

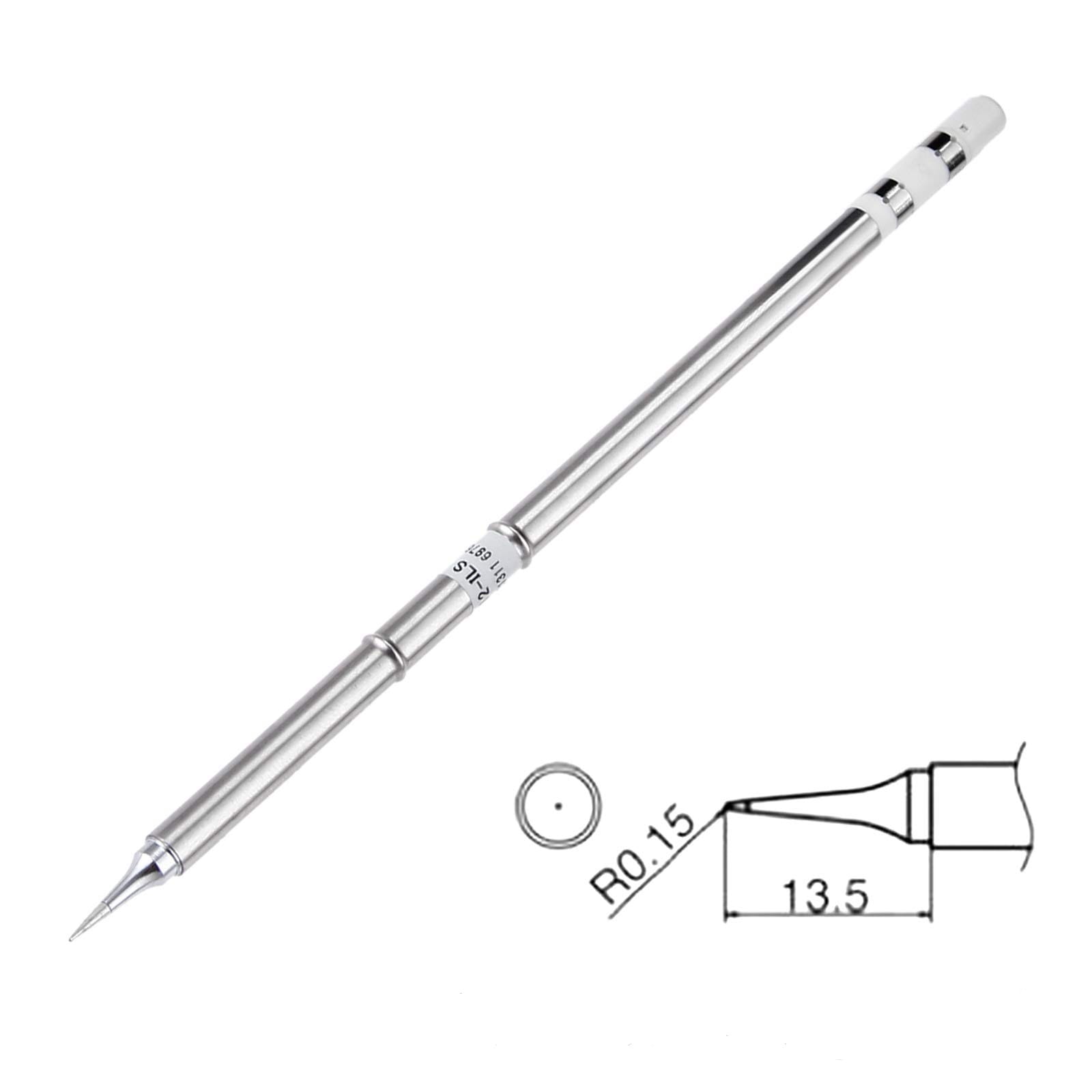

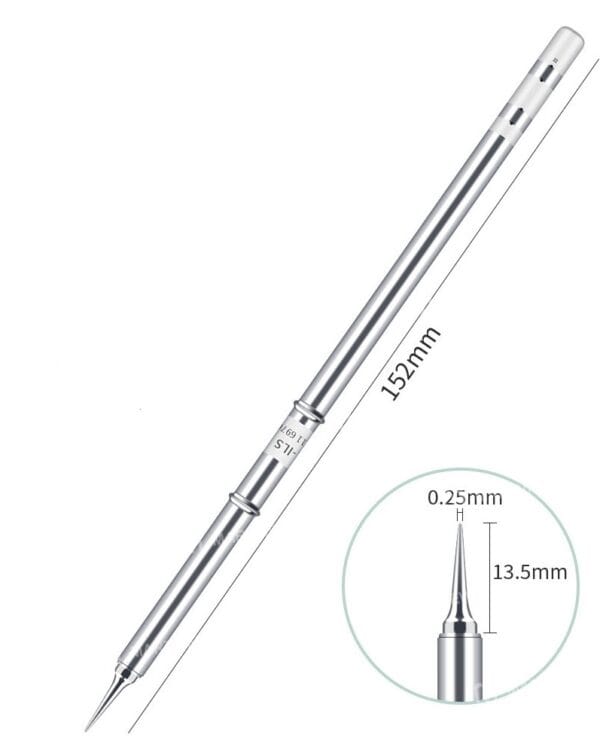

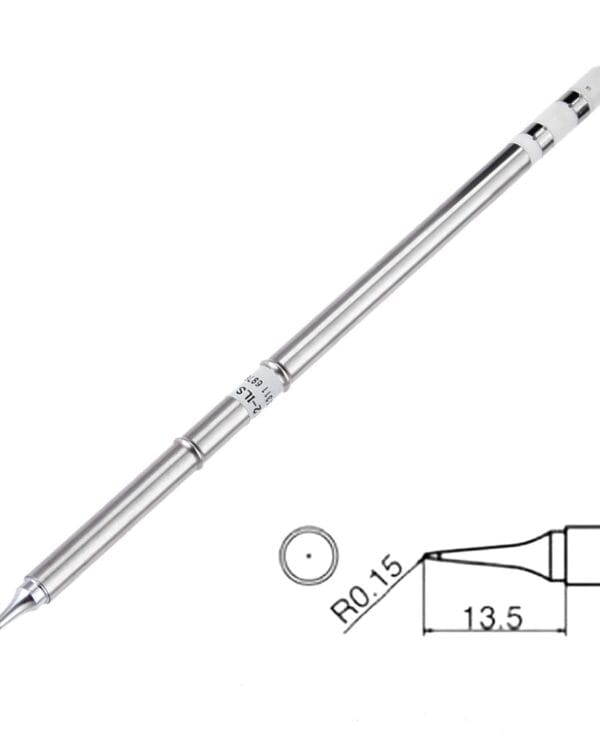

• Tip Profile (ILS): Extra-thin, sharp conical point. It is much thinner than standard conical tips, making it ideal for navigating dense components.
• Architecture: All-in-one composite design. The internal thermocouple is located right at the tip for instantaneous temperature feedback.
• Power & Range: Typically handles up to 36W–75W (depending on the station) with a standard operating temperature range of 0°C to 480°C.
• Material Composition: Features a refined copper core for superior thermal conductivity, multi-layer iron/chromium plating for corrosion resistance, and a pre-tinned lead-free tip to prevent oxidation.

Primary Applications:

• Micro-SMD Soldering: Ideal for narrow-pitch components, 0201/0402 surface-mount devices (SMD), and microscopic logic board work.
• Mobile & Device Repair: Widely used by technicians for jumper wire installations on iPhone, Android, and MacBook logic boards.
• High-Density PCBs: Accessing tight spaces between tall components where a wider chisel or knife tip cannot fit without melting surrounding plastic.
