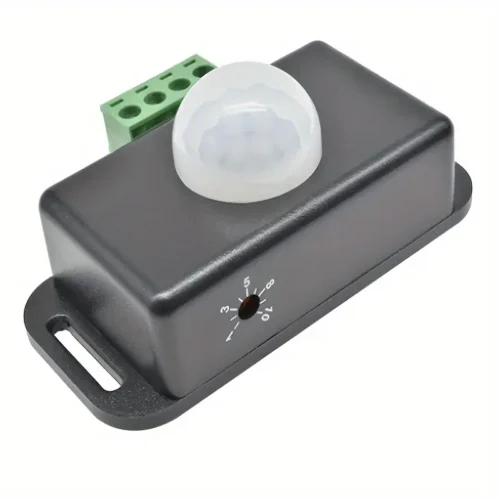

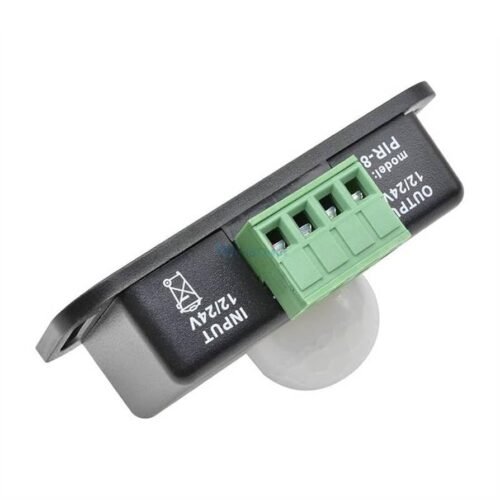

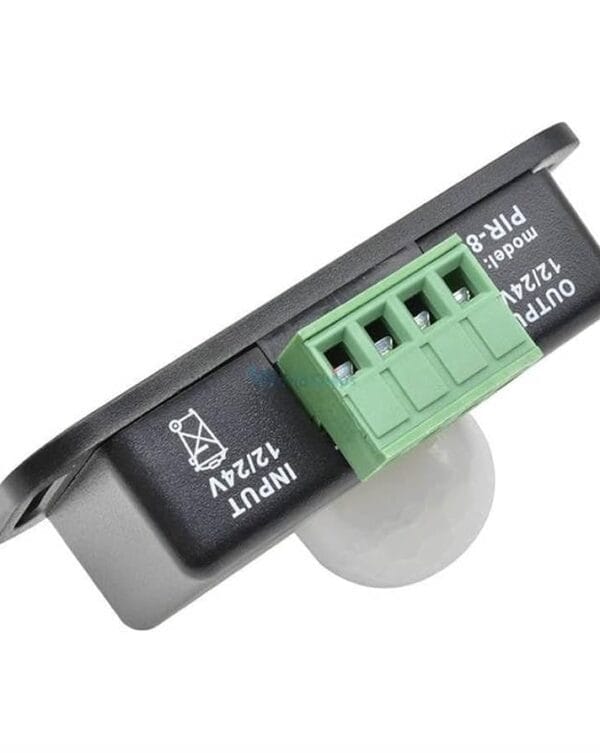

8A Automatic Adjust PIR Motion Sensor

The 8A Automatic Adjust PIR Motion Sensor is a DC 12V-24V, 8A switch that detects motion to control lights or devices automatically, offering energy-efficient operation. Designed to save energy and prolong the life of your LED lights. Motion detection range is within 15′ of the PIR sensor. The single-channel sensor has an 8-Amp maximum load and operates within a 12V-24V DC range.

Key Features:

• Motion Detection: The PIR (Passive Infrared) sensor detects movement in its detection range. When motion is sensed, the switch triggers the connected device (e.g., lights, fans) to turn on automatically.
• Voltage Range: Designed to operate on DC 12V to 24V, making it suitable for low-voltage systems, including solar-powered or battery-operated setups.
• Current Rating: Capable of handling a 6A current, allowing it to control medium-power devices like lights, small appliances, or security systems.
• Energy Efficiency: By automatically switching devices on or off based on motion detection, it reduces energy wastage, especially in areas where lighting or equipment does not need to be continuously on.
• Adjustable Settings: Many PIR motion sensors, including this model, allow you to adjust parameters like sensitivity (how easily motion is detected) and delay time (how long the device stays on after motion is detected).
• Wide Application: Ideal for use in residential, commercial, and industrial environments. It can be used to control lights, air conditioning systems, fans, security cameras, or alarm systems in places like hallways, bathrooms, or entryways.
• Simple Installation: Easy to install in existing electrical circuits, typically wired between the power source and the device being controlled.

Specifications:

• Material: ABS
• Size: 76 x 45 x 34mm(LxWxH)
• Color: Black
• Input Voltage: DC12-24V
• Output Voltage: DC12-24V
• Output Current: Max 6A
• Output Channel: 1
• Power: 72W(12VDC), 144W(24VDC)
• Sensor: Infrared Motion
• Sensing Distance: 8 meters
• Detecting Angle: 120°
• Delay Time: 1-10Mins(Adjustable)
• IP Rating: IP20 Non-Waterproof
• Working Temperature: -20-+60℃

Applications:

• Lighting Control: Automatically turn lights on when you enter a room and off when you leave.
• Security Systems: Integrate with alarms or cameras for automatic activation when motion is detected.
• Home Automation: Perfect for smart home setups to trigger devices based on occupancy.
• Public and Commercial Spaces: Use in corridors, stairways, or office spaces to conserve energy and enhance security.
