600W DC-DC 10-60V to 12-80V 10A Step-up Boost Converter

The 600W DC-DC 10-60V to 12-80V 10A Step-up Boost Converter is robust, versatile module which includes a large heatsink for bigger loads. The 600W step-up module allows you to adjust the voltage output based on the device’s needs.
This step-up voltage converter module can stabilize the solar panel voltage and is a good choice to use while charging batteries.
The voltage step-up module adopts over-current, protection, and other protections which makes the step-up module safe and reliable to use.

Specifications:

• Input voltage: 10V-60V
• Input Current: Maximum input current 15A
• Output voltage: 12V-80V continuously adjustable
• Output current: maximum output current of 10A (adjustable)
• Output power: effective power P = input voltage V * 10A
• Conversion efficiency: up to 95% (input voltage and current; conversion efficiency of the output voltage, current impact)
• Short-circuit protection: fuse
• Installation size: 73 * 51mm

Mechanics:

• Products chronological materials
• Custom radiator Specifications: Radiator floor thickness 5mm, tooth height 21mm, length 85mm, width 63mm
• Module fixed above the radiator, radiator and boost board are integrated design, this is very user-friendly to allow direct use
• Only need to use long screws to amount in your system.

Electronics:

• Inductor magnetic ring use bead of 27mm Sendust, 1mm double wire wound inductors, high-quality filter capacitor, input a 1000uF63V electrolytic capacitors, and output two 470uF100V electrolytic capacitors

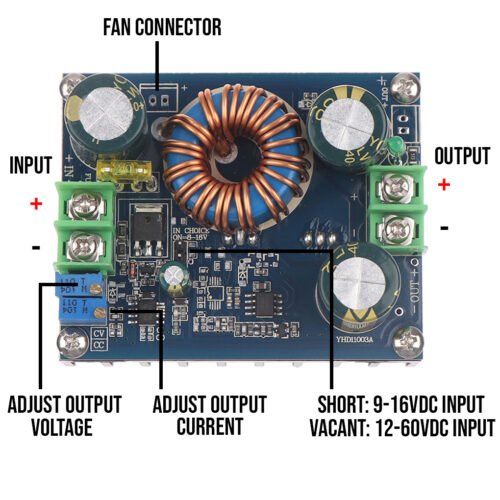

• On-board power supply switch, power indicator, voltage regulation, current adjustment potentiometer so that the output is more convenient
• You can always adjust the output voltage, the current size of the input and output using 8500 terminals, through the current ability to ensure a long time reliable.

Applications:

• DIY an output adjustable vehicle power supply, only need 12V power input access, output voltage (14V-80V) free and continuous adjustment of the output voltage can not be lower than the input voltage.
• Universal car laptop power supply. 12V power input connected to the output regulation voltage notebook need to work.
• Boost charger, 12V power higher than 12V battery charging, for example, for 24V battery, and charging current can be adjusted.
• Powered electronic equipment, as long as the voltage is adjusted to the desired voltage and current does not exceed the rated current can work properly.
• System level power supply before, when design a project, input is 10V-18V, but system board needs about 24V of power and a great power, general DC-DC module power is too small, then the module will be your most good choice, no need to debug and work directly on the machine, easily enable high-efficiency high-power boost.

Datasheet: https://w2.electrodragon.com/Board-dat/OPM/OPMS022-dat/OPMS022-dat.md
