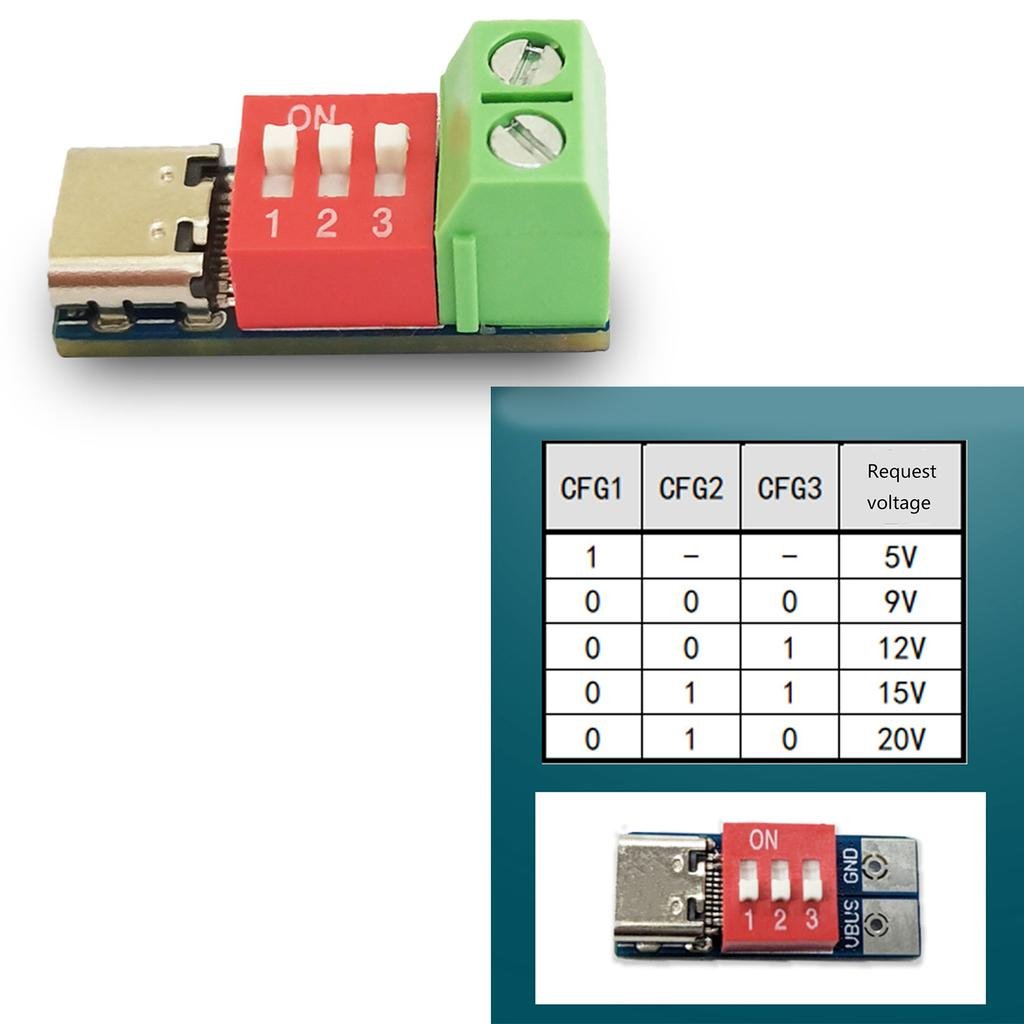

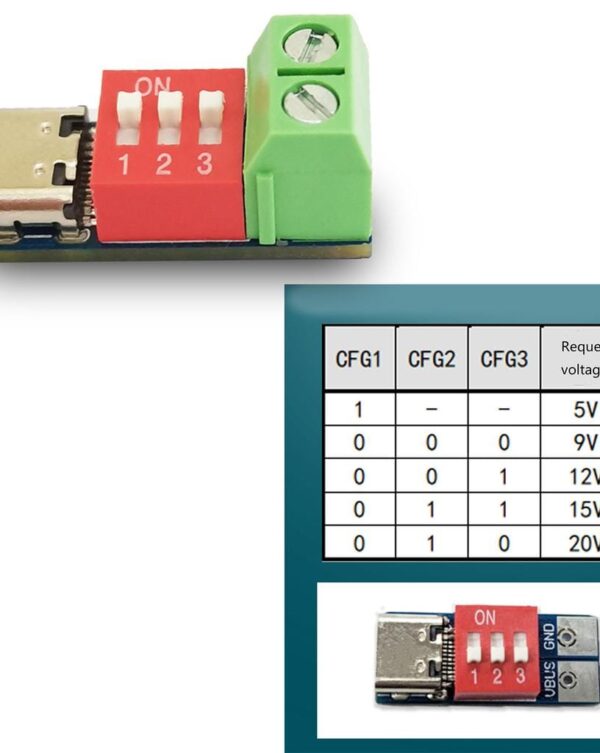

5-20V QC PD Fast Charging Test Board Module

The 5-20V QC PD Fast Charging Test Board Module is a compact and efficient module designed to test fast charging protocols including Quick Charge (QC) 2.0/3.0 and USB Power Delivery (PD). It is capable of triggering various voltage levels from 5V to 20V depending on the charger specification, making it ideal for validating and debugging USB fast chargers, power banks, and USB-C adapters.

Features:

• Supports QC 2.0/3.0 and PD 2.0/3.0 protocols
• Can trigger voltage output of 5V, 9V, 12V, 15V, and 20V
• Type-C and USB-A male connectors for universal compatibility
• Onboard indicator LEDs for selected voltage
• Compact size and easy-to-use interface

Specifications:

• Input Interface: USB-A & USB Type-C
• Output Voltage: 5V, 9V, 12V, 15V, 20V (depending on charger)
• Protocol Support: QC 2.0/3.0, PD 2.0/3.0
• Operating Voltage Range: 5V to 20V
• Dimensions: Compact and portable

Applications:

• Testing fast charging protocols in USB chargers
• Power bank validation and debugging
• PD power supply output testing
• Electronics bench development and QA

Package Includes:

• 1 x 5-20V QC PD Fast Charging Test Board Module
