16-Channel Multiplexer Module (CD74HC4067)

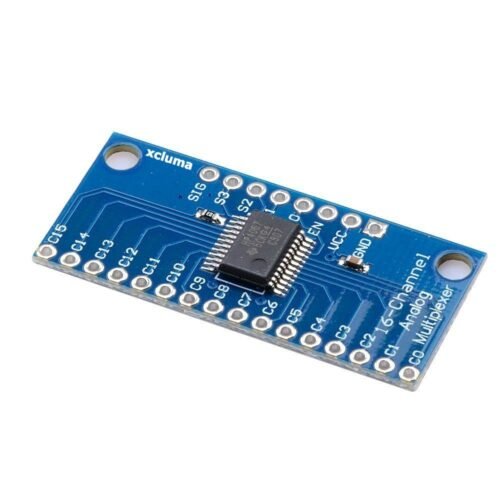

The 74HC4067 module is a 16-channel analog/digital multiplexer, which allows a single input/output to be connected to one of 16 channels. It is ideal for expanding the number of I/O pins on microcontrollers and is suitable for applications requiring multiple analog sensors, digital inputs, or outputs. This module is compatible with both analog and digital signals, making it versatile for various electronic projects.

Key Features:

• 16 Channels: Provides 16 independent channels for analog or digital signals.
• High-Speed Operation: Based on the high-speed CMOS technology of the 74HC4067 IC.
• Low On-Resistance: Ensures minimal signal loss and high signal integrity.
• Wide Voltage Range: Operates from 2V to 6V, making it compatible with a wide range of microcontrollers.
• Control Interface: Controlled via 4 digital pins for channel selection.
• Compact Design: Small form factor for easy integration into projects.

Technical Specifications:

• IC: 74HC4067
• Channels: 16
• Operating Voltage: 2V to 6V
• Control Pins: 4 (S0, S1, S2, S3)
• Common Pins: 2 (COM, EN)
• On-Resistance: ~70Ω at 5V
• Signal Type: Analog and Digital
• Operating Temperature Range: -40°C to +85°C
• Dimensions: 35mm x 50mm (approx.)

Applications:

• Sensor Multiplexing: Allows multiple analog sensors to be read using a single analog input pin.
• Digital I/O Expansion: Expands the number of digital inputs or outputs for microcontroller projects.
• Signal Routing: Used in signal routing applications where multiple signals need to be directed to a single point.
• Data Acquisition Systems: Ideal for data acquisition systems requiring multiple input channels.
• DIY Electronics Projects: Suitable for hobbyists and makers working on complex electronics projects.
