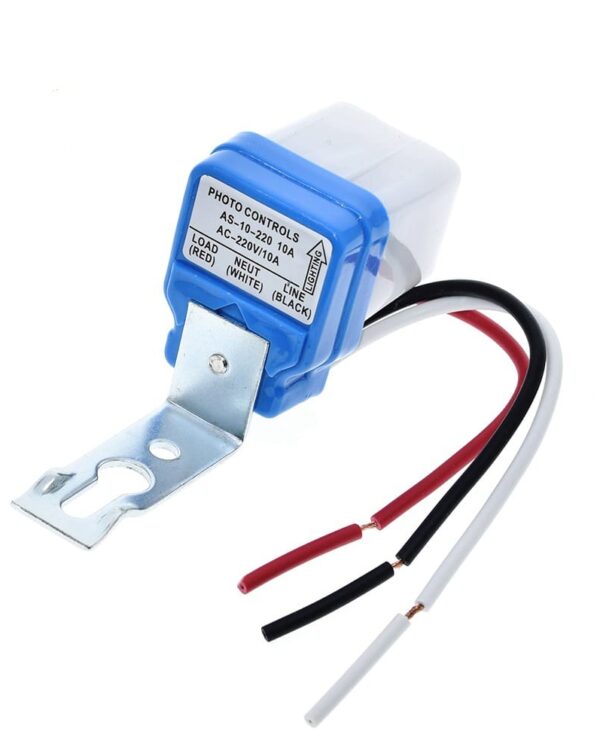

    10A Photoswitch Sensor Switch

    ₦ 3,500

    Fast Shipping

    Technical Support

    Nationwide Delivery

    To all 36 States

    Description
    The 10A Photoswitch Sensor Switch is an automatic “dusk-to-dawn” light controller that uses photocell technology to detect ambient light levels, turning connected fixtures on at night and off during the day without manual intervention. These sensors are typically rated for a 10A load current, supporting high-wattage lighting systems up to 2200W.
    Key Technical Specifications:
    • Load Capacity: 10A maximum current, handling up to 2200W for high-power street or garden lights.
    • Voltage Variants: Available in multiple versions including 12V DC/AC, 24V, and universal 110V/220V AC models.
    • Detection Range: Most models feature a sensing range of approximately 10 meters.
    • Time Delay: Typically equipped with a 0.1S delay circuit to prevent false triggering from temporary light flashes like car headlights.
    • Durability: Often built with IP33 or IP54 weather-resistant housings to withstand outdoor conditions.
    Installation & Placement Tips:
    To ensure reliable operation, follow these guidelines from manufacturer specifications:
    • Avoid Shadows: Do not install in areas that remain extremely dark during the day, as this may keep the light on constantly.
    • Avoid Feedback: Ensure the sensor is not placed directly in the path of the light it is controlling to prevent a “cycling” effect where the light turns itself off.
    • Orientation: For outdoor use, position the outlet end downward to prevent water ingress into the unit.
